LiTime 12V 200Ah Plus LiFePO4 Lithium Battery - 200A BMS
Model #: 12V 200Ah Plus SKU: 12V200-200-PLUS-8-A160
Product Details
Product Description for LiTime 12V 200Ah Plus LiFePO4 Lithium Battery - 200A BMS
LiTime 12V 200Ah Plus LiFePO4 Deep Cycle Lithium Battery – High-Performance 200A BMS Power Solution for Marine, Solar, RV, and Off-Grid Systems
Elevate your energy storage with the LiTime 12V 200Ah Plus LiFePO4 battery (Model: 12V 200Ah Plus), a lightweight, high-performance deep cycle battery featuring an upgraded 200A BMS for enhanced flow capacity, designed for demanding marine, solar, RV, and renewable energy applications. Delivering 2560Wh of energy with a 200A continuous discharge (400A peak for 5s, 600A for 1s), this battery provides 100% usable capacity, up to 10x longer life than lead-acid, and fast charging with partial state-of-charge tolerance. Its advanced integrated Battery Management System (BMS) with 20+ protections safeguards against overcharge, over-discharge, short circuits, over-current, and thermal extremes, ensuring safe, efficient performance in rugged environments with an IP65-rated enclosure. Key Features:
- Upgraded 200A BMS: Supports max 200A continuous charge/discharge and 2560W output power, with simplified wiring and lower internal resistance for superior performance.
- Exceptional Cycle Life: Up to 4,000 cycles at 100% depth of discharge, backed by a 5-year limited warranty for unmatched longevity and cost savings.
- Lightweight & Efficient: Only 45.59 lbs with high energy density and low self-discharge for easy handling and minimal maintenance—no watering or equalization needed.
- Wide Temperature Resilience: Discharge from -4°F to 140°F (-20°C to 60°C), charge from 32°F to 122°F (0°C to 50°C), and store from 14°F to 122°F (-10°C to 50°C) with low-temp protection for year-round versatility.
- Safe & Certified: UL-1973, FCC, CE, RoHS, and UN38.3 compliant; non-toxic LiFePO4 chemistry with EV-grade A-cells for eco-friendly, indoor-safe operation.
- Rugged IP65 Enclosure: Dust-tight and water-resistant ABS case with M8 bolt terminals for secure, vibration-resistant connections in harsh conditions.
- Versatile Charging: Up to 200A max charge via 3 methods (LiFePO4 charger, solar panels, or generator) at 14.4V CC/CV for quick recharges.
- Scalable & Compatible: Up to 4S4P configuration (40.96kWh max); pairs seamlessly with Victron, Renogy, and other inverters for expanded 12V systems.
Specifications at a Glance:
- Voltage: 12.8V; Capacity: 200Ah; Energy: 2560Wh.

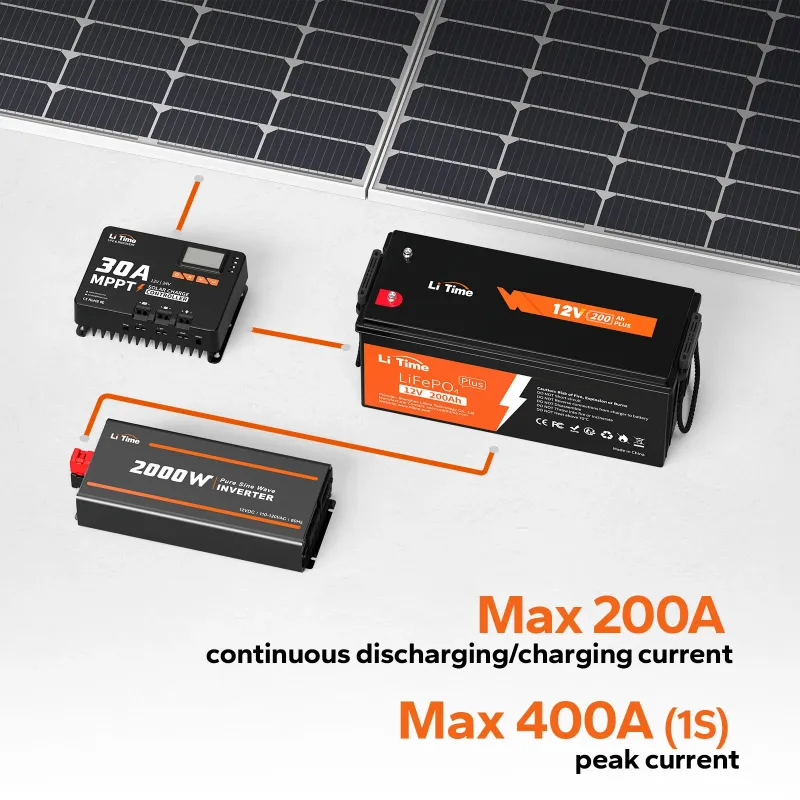

- Discharge: 200A continuous, 400A peak (5s), 600A peak (1s); Charge: 200A max.
- Efficiency: 99%; Self-Discharge: <3% per month; Internal Resistance: ≤40 mΩ.

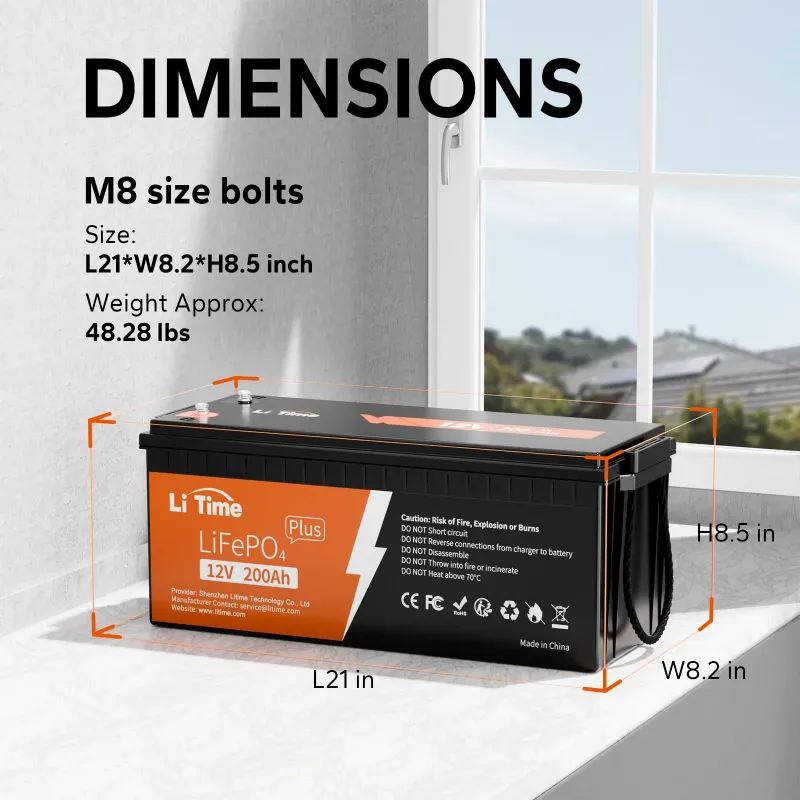

- Dimensions: 21 x 8.2 x 8.5 in (533 x 208 x 216 mm); Weight: 45.59 lbs (20.67 kg).
- Enclosure: IP65 ABS; Terminals: M8 Bolts.
Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether for marine adventures, RV excursions, or solar storage, the LiTime 12V 200Ah Plus delivers unmatched efficiency, safety, and peace of mind. Order now and experience LiTime’s innovative lithium excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
