LiTime 12V 200Ah LiFePO4 Deep Cycle Lithium Battery
Model #: 12V 200Ah SKU: 12V200-100-BASIC-8-A160
Product Details
Product Description for LiTime 12V 200Ah LiFePO4 Deep Cycle Lithium Battery
LiTime 12V 200Ah LiFePO4 Deep Cycle Lithium Battery – High-Capacity Power Solution for Marine, Solar, RV, and Off-Grid Systems
Elevate your energy storage with the LiTime 12V 200Ah LiFePO4 battery (Model: 12V 200Ah), a lightweight, high-performance deep cycle battery designed for demanding marine, solar, RV, and renewable energy applications. Delivering 2560Wh of energy with a 100A continuous discharge (400A peak for 1s), this battery provides 100% usable capacity, up to 10x longer life than lead-acid, and fast charging with partial state-of-charge tolerance. Its advanced integrated Battery Management System (BMS) protects against overcharge, over-discharge, short circuits, and thermal extremes, ensuring safe, efficient performance in rugged environments with an IP65-rated enclosure. Key Features:
- EV-Grade Cells: High-quality A-grade LiFePO4 cells with 53Wh/lb energy density for superior performance and reliability.

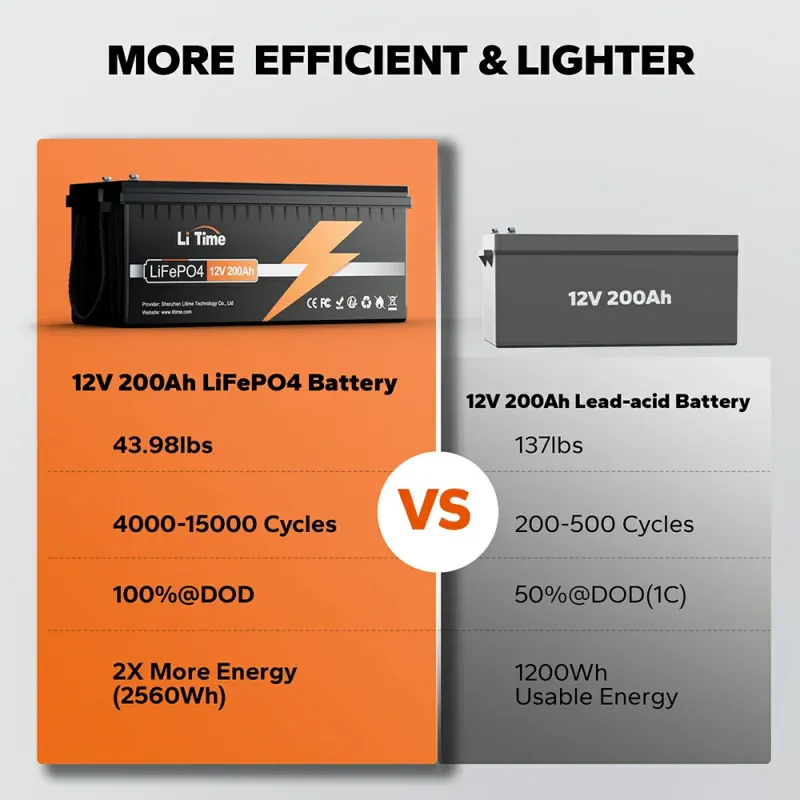

- Exceptional Cycle Life: Up to 4,000 cycles at 100% depth of discharge, backed by a 5-year limited warranty for superior longevity and cost savings.
- Lightweight & Efficient: Only 44 lbs with 99% round-trip efficiency and <3% monthly self-discharge for easy handling and minimal maintenance.
- Wide Temperature Resilience: Discharge from -4°F to 140°F (-20°C to 60°C), charge from 32°F to 122°F (0°C to 50°C), and store from 14°F to 122°F (-10°C to 50°C) for reliable all-season use.
- Safe & Certified: UL-1973, FCC, CE, RoHS, and UN38.3 compliant; non-toxic LiFePO4 chemistry with no gassing or fumes for eco-friendly, indoor-safe operation.
- Rugged IP65 Enclosure: Dust-tight and water-resistant ABS case with M8 bolt terminals for secure, vibration-resistant connections.
- Fast Charging Capability: Up to 100A max charge with low internal resistance for quick recharges (recommended 40A), even at low temperatures (reduced rates below 32°F).
- Scalable & Compatible: Up to 4S4P configuration (40.96kWh max); pairs seamlessly with Victron, Renogy, and other inverters for expanded 12V systems.
Specifications at a Glance:
- Voltage: 12.8V; Capacity: 200Ah; Energy: 2560Wh.
- Discharge: 100A continuous, 400A peak (1s); Charge: 100A max.
- Efficiency: 99%; Self-Discharge: <3% per month.

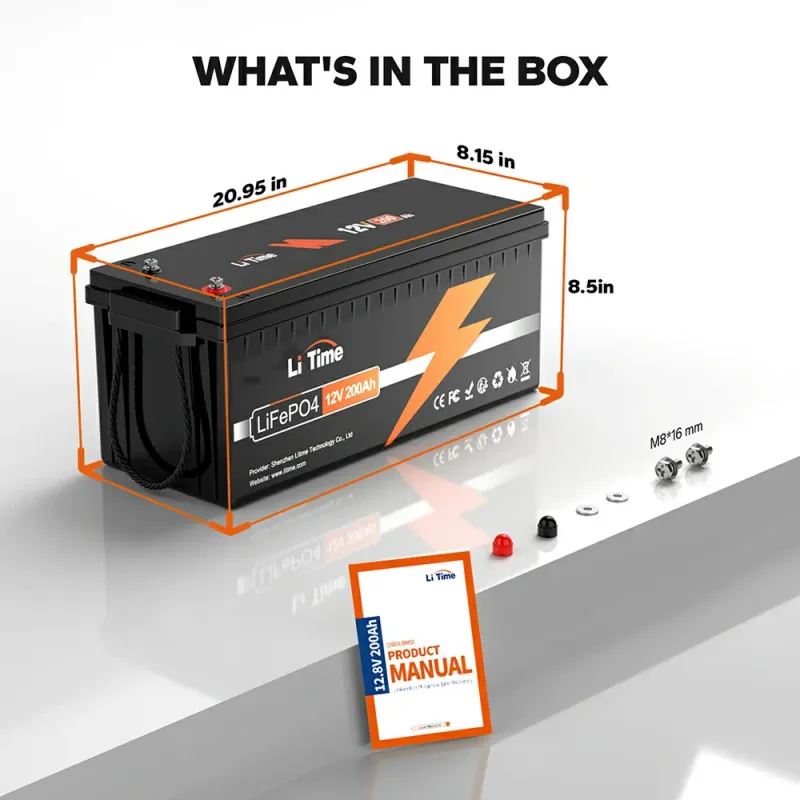

- Dimensions: 21 x 8.2 x 8.5 in (533 x 208 x 216 mm); Weight: 44 lbs (20 kg).
- Enclosure: IP65 ABS; Terminals: M8 Bolts.
Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether for marine adventures, RV excursions, or solar storage, the LiTime 12V 200Ah delivers unmatched efficiency, safety, and peace of mind. Order now and experience LiTime’s innovative lithium excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
