LiTime 100A MPPT 12V/24V/36V/48V Bluetooth Solar Charge Controller
Model #: 100A MPPT Solar Charge Controller SKU: 48V100A-MPPT-BT-E
Product Details
Product Description for LiTime 100A MPPT 12V/24V/36V/48V Bluetooth Solar Charge Controller
LiTime 100A MPPT Solar Charge Controller for 12V/24V/36V/48V Batteries with Bluetooth – Intelligent Solar Power Regulator for RV, Marine, Off-Grid, and Solar Systems
Elevate your solar energy efficiency with the LiTime 100A MPPT Solar Charge Controller, a compact, high-performance device designed to optimize charging for 12V/24V/36V/48V LiFePO4, lead-acid (AGM, GEL, Flooded), and other batteries in RVs, boats, off-grid cabins, and home solar setups. Featuring Maximum Power Point Tracking (MPPT) technology with up to 99.9% tracking efficiency and 98% peak conversion efficiency, it maximizes solar panel output by 30% compared to PWM controllers, supporting up to 1500W (12V), 3000W (24V), 4500W (36V), or 6000W (48V) solar input with automatic voltage detection. Bluetooth 5.0 enables real-time app monitoring via the LiTime APP (SOC, voltage, current, power, and more), while the built-in LCD screen displays system status, battery type, and protections. With 4-stage charging (bulk, absorption, float, equalization) and comprehensive safeguards against overcharge, over-discharge, reverse polarity, short circuit, and overheating, this controller ensures safe, efficient performance in rugged environments with an IP65-rated enclosure. Key Features:
- MPPT Efficiency: Up to 99.9% tracking efficiency with 30% more power harvest than PWM controllers for faster battery charging.
- Bluetooth 5.0 Monitoring: Real-time app control and data logging for SOC, voltage, current, and system performance.
- Auto Voltage Detection: Automatically identifies 12V/24V/36V/48V systems for hassle-free setup.
- 4-Stage Smart Charging: Bulk, absorption, float, and equalization modes optimized for LiFePO4 and lead-acid batteries.

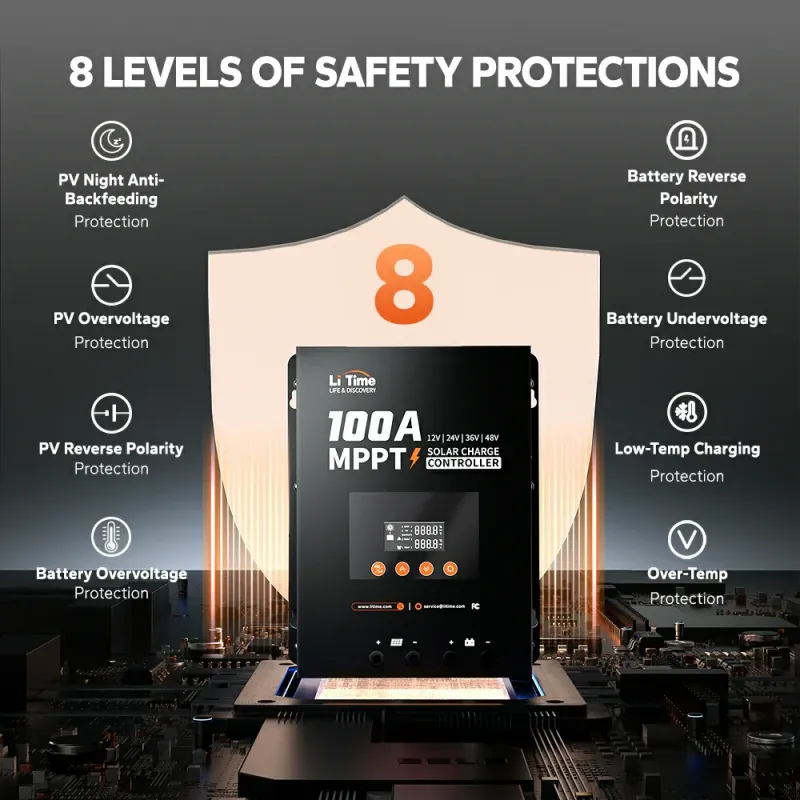

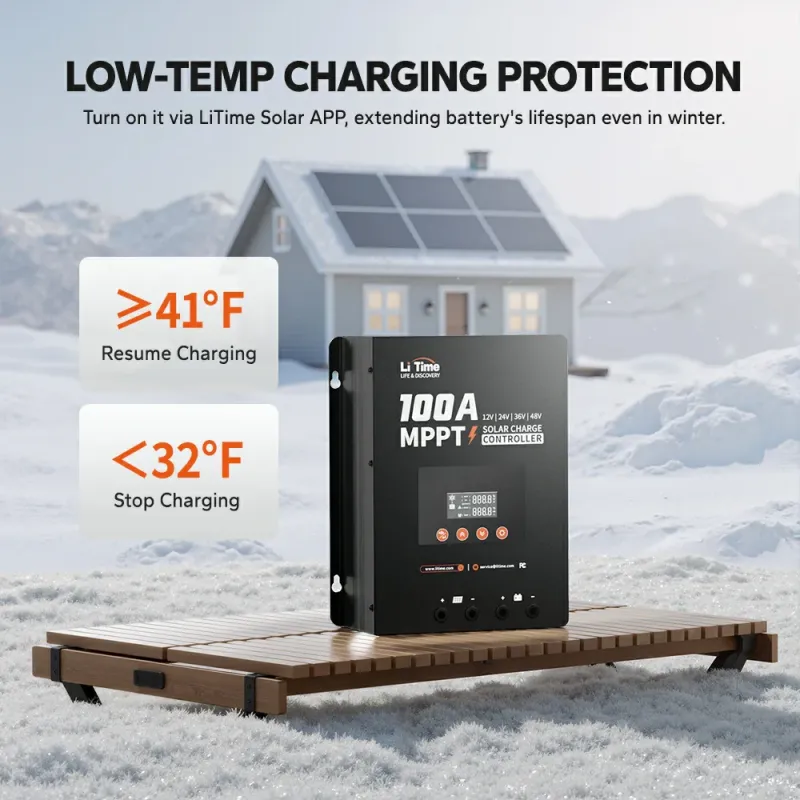

- Comprehensive Protections: Overcharge, over-discharge, reverse polarity, short circuit, overheating, and reverse current safeguards.

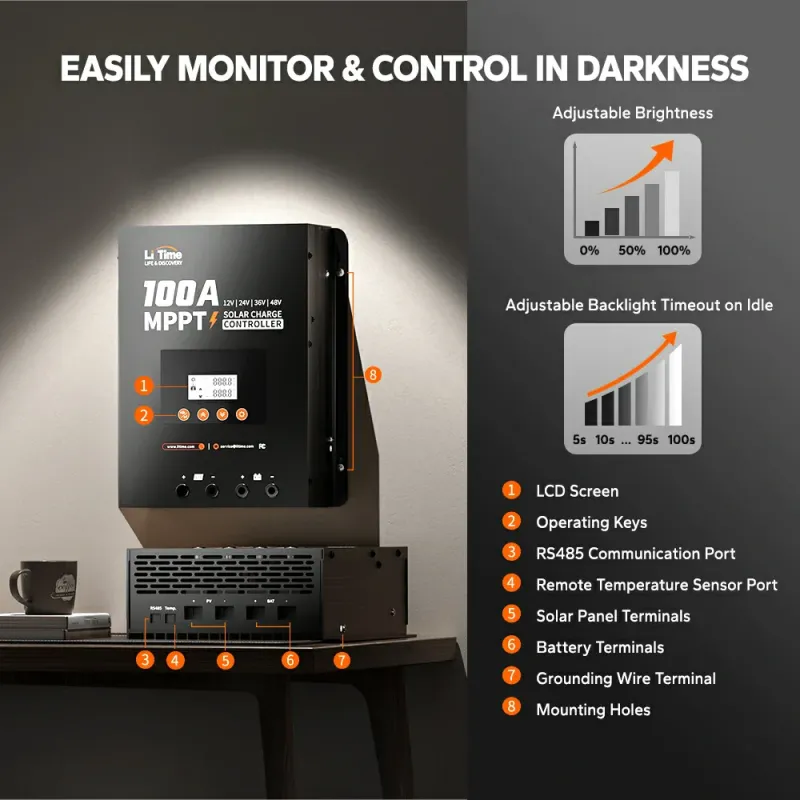

- LCD Display: Built-in screen shows charging parameters, battery type, and fault codes for easy troubleshooting.
- Versatile Compatibility: Supports up to 6000W solar input with 100A max output current.
- Rugged IP65 Enclosure: Dust-tight and water-resistant design for marine, RV, and outdoor use.
Specifications at a Glance:
- Rated Current: 100A; System Voltage: 12V/24V/36V/48V Auto Detect.
- Max PV Input Power: 1500W (12V), 3000W (24V), 4500W (36V), 6000W (48V); Max PV Voltage: 150V DC.
- Battery Voltage: 9V - 64V; Max Power Point Voltage Range: Battery Voltage +3V to 120V.
- No-Load Loss: 12V<10mA / 24V<6mA / 36V<5mA / 48V<4mA.
- Efficiency: MPPT Tracking >99.9%; Peak Conversion Efficiency: 98%.
- Operating Temperature: -4°F to 140°F (-20°C to 60°C); Storage: -40°F to 158°F (-40°C to 70°C).

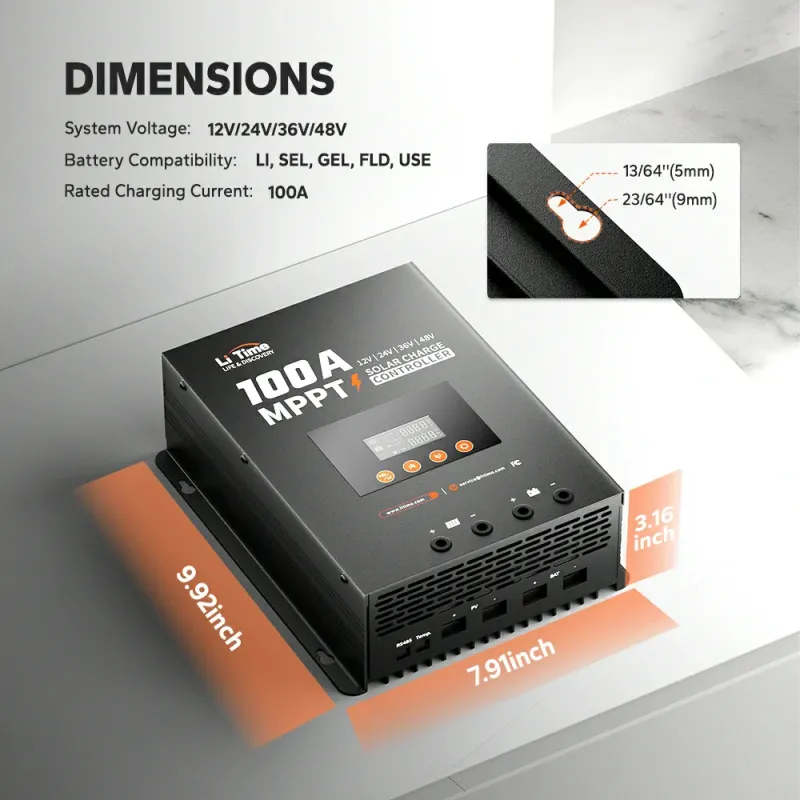

- Dimensions: 7.91 x 9.92 x 3.16 in (201 x 252 x 80.3 mm); Weight: 5.49 lbs (2.49 kg).
- Certifications: CE, RoHS.
Pair this controller with our premium LiFePO4 batteries and solar panels for a complete, high-efficiency solar ecosystem. Whether for RV boondocking, marine charging, or off-grid setups, the LiTime 100A MPPT controller delivers unmatched reliability and peace of mind. Order now and experience LiTime’s innovative solar technology—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
