NOCO GEN5X1 12V 1-Bank 5A On-Board Battery Charger

Model #: GEN5X1 SKU: GEN5X1

Quantity
Price $79.95 +Add to wishlist +Add to gift registry

Product Details

Product Description for NOCO GEN5X1 12V 1-Bank 5A On-Board Battery Charger

NOCO GEN5X1 12V 1-Bank 5A On-Board Battery Charger – Compact, Waterproof Maintainer and Desulfator for Marine, Automotive, and Lithium Batteries Secure reliable onboard battery maintenance with the NOCO GEN5X1 12V 1-Bank 5A On-Board Battery Charger (Model: GEN5X1), an advanced, fully sealed charger designed for extreme marine and vehicle environments. Ideal for boats, trolling motors, generators, cars, trucks, SUVs, ATVs, RVs, and powersports, this 5A smart charger supports lead-acid (flooded, gel, AGM, maintenance-free, calcium, EFB) and 12V lithium-ion (LiFePO4) batteries up to 120Ah, with modes for charging, maintenance, desulfation, and repair. Its IP68 waterproof rating and thermal compensation ensure safe, efficient performance even underwater or in harsh conditions.

Key Features:

  • Smart Automatic Charging: Multi-stage profiles optimize charging, detect and repair sulfation/acid stratification, and provide float maintenance without overcharging for extended battery life.
  • Multi-Chemistry Support: Selectable modes for 12V lead-acid (wet, gel, AGM, EFB), 12V lithium-ion with BMS, and 12V repair mode for batteries below 1V—handles diverse types seamlessly.

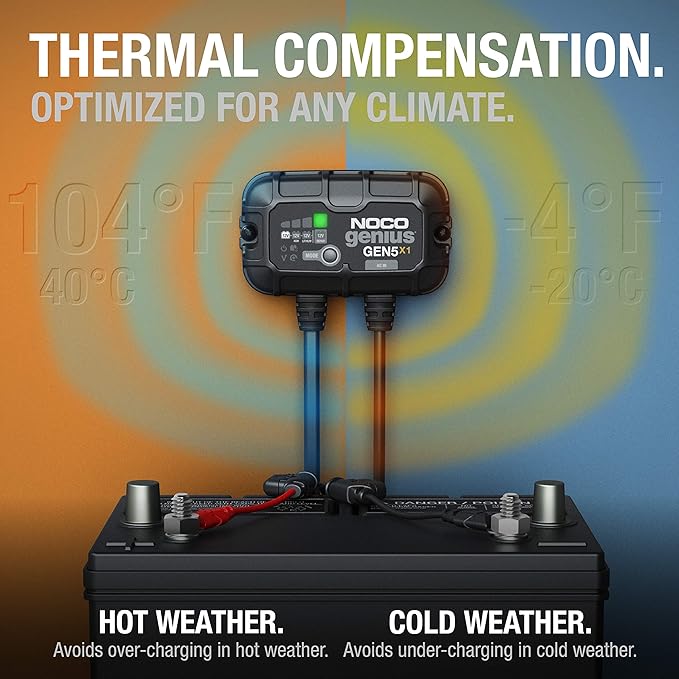

  • Temperature Compensation: Built-in sensor adjusts charging for optimal results in -4°F to 104°F environments.

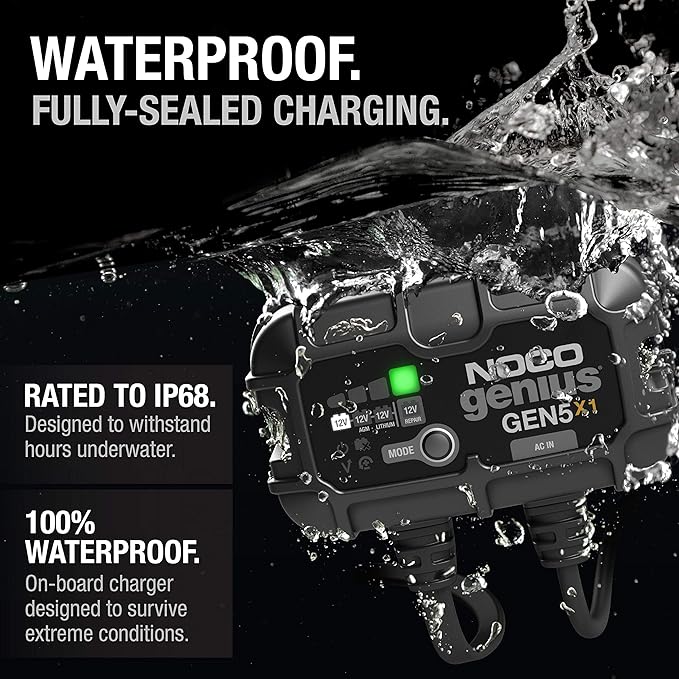

  • On-Board Waterproof Design: 51% smaller and 43% more powerful than the GENM1, with IP68 rating (fully submersible) for shock, vibration, and underwater resistance.

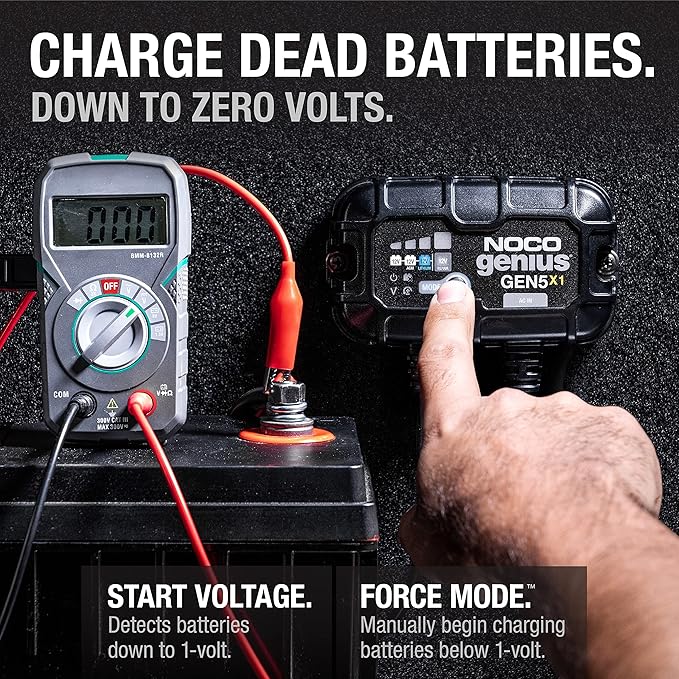

  • Force Mode: Manually activates to revive extremely depleted batteries down to 0V.
  • Safety Optimized: Spark-proof, reverse polarity protection, overcharge safeguards, and short-circuit prevention for worry-free installation.

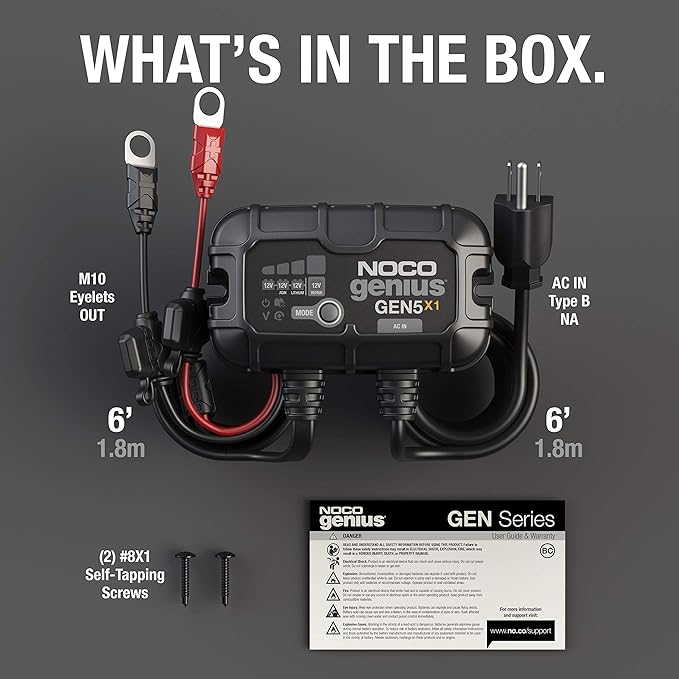

  • Versatile Mounting: Includes self-tapping screws and 72-inch DC cables with 3/8-inch eyelets for permanent onboard setup.
  • Warranty: Backed by a 3-year limited warranty for rugged, USA-engineered quality.

Specifications at a Glance:

  • Charging Current: 5A; Voltage: 12V.

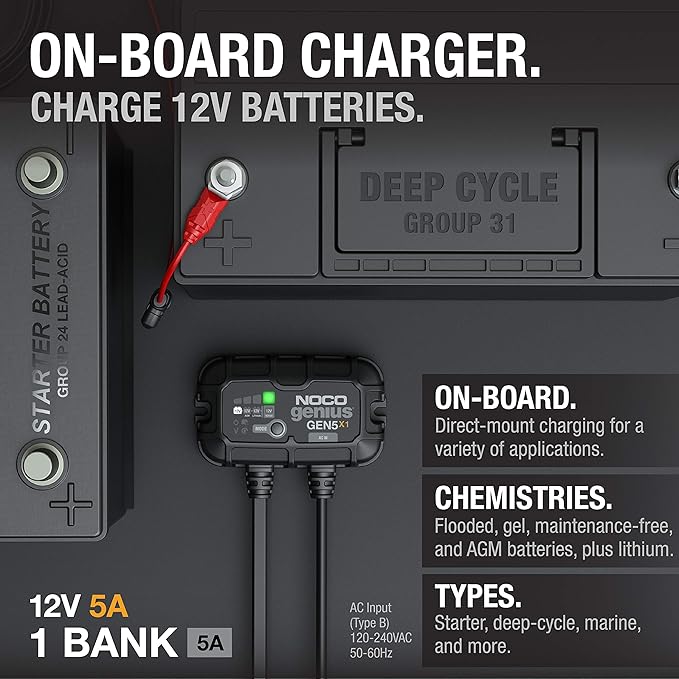

  • Battery Types: Lead-Acid (Flooded, Gel, AGM, MF, CA, EFB), 12V Lithium (LiFePO4 with BMS).
  • Capacity Range: Up to 120Ah (maintenance for all sizes).
  • Input: 120-240V AC, 50/60Hz.
  • Power Consumption: 72W max.
  • Dimensions: 7.8" x 3.9" x 2.4" (198 x 99 x 61 mm); Weight: 2.2 lbs (1.0 kg).
  • Operating Temperature: -4°F to 104°F (-20°C to 40°C); Storage: -22°F to 140°F (-30°C to 60°C).
  • Certifications: FCC Part 15 Class B, RoHS compliant; IP68 rating.

Pair this onboard smart charger with our premium lithium-ion batteries for a marine-ready maintenance system. Whether powering your boat or ATV, the NOCO GEN5X1 delivers compact, unstoppable protection. Order now and conquer the elements—stocked and ready to ship from lithiumion-batteries.com!
