Dakota Lithium & Zamp Solar 12v 200Ah Off-Grid Power System

Model #: 12V 200Ah + Zamp Solar + Victron Bundle SKU: 12V 200Ah + Zamp Solar + Victron Bundle

Quantity
Price $2,989.00 +Add to wishlist +Add to gift registry

Product Details

Dakota Lithium 12V 200Ah LiFePO4 Off-Grid Power System with Zamp Solar Panel and Victron Bundle

Dakota Lithium 12V 200Ah LiFePO4 Off-Grid Power System with Zamp Solar Panel and Victron Bundle – High-Performance Power Solution for RVs, Marine, Solar, Trolling Motors, and Dual Battery Systems

This comprehensive off-grid power system bundles two Dakota Lithium 12V 100Ah Deep Cycle LiFePO4 Batteries (total 200Ah at 12.8V/2.56kWh) with a Zamp Solar 190W Rooftop Kit and Victron Energy components for seamless alternator and solar charging. The batteries offer twice the usable capacity of lead-acid at half the weight (55.1 lbs total), with over 5,000 cycles at 80% DoD and Internal Even-Heat Technology for charging below 32°F. The Zamp kit includes a 40A PWM solar charge controller optimized for lithium, pre-assembled wiring, and stainless steel mounting for up to 700W expansion. Victron's Orion-TR Smart 12/12-18A DC-DC charger enables adaptive 3-stage alternator charging via Bluetooth app, while the 1200VA Phoenix inverter converts DC to 120V AC for appliances, and the Smart Shunt 500A/50mV monitor tracks energy via app. Ideal for RVs, boats, camper vans, or small cabins requiring maintenance-free, efficient power.

Key Features:

  • Dual 100Ah Batteries: 200Ah total capacity with flat voltage curve for consistent power; active BMS for overcharge/over-discharge/short-circuit/thermal protection.
  • Zamp Solar 190W Rooftop Kit: Expandable to 700W; 40A 5-stage PWM controller for lithium; pre-wired with roof cap and mounting hardware.
  • Victron Orion-TR Smart Charger: 12/12-18A isolated DC-DC with Bluetooth for monitoring/programming; adaptive charging for lithium/lead-acid.

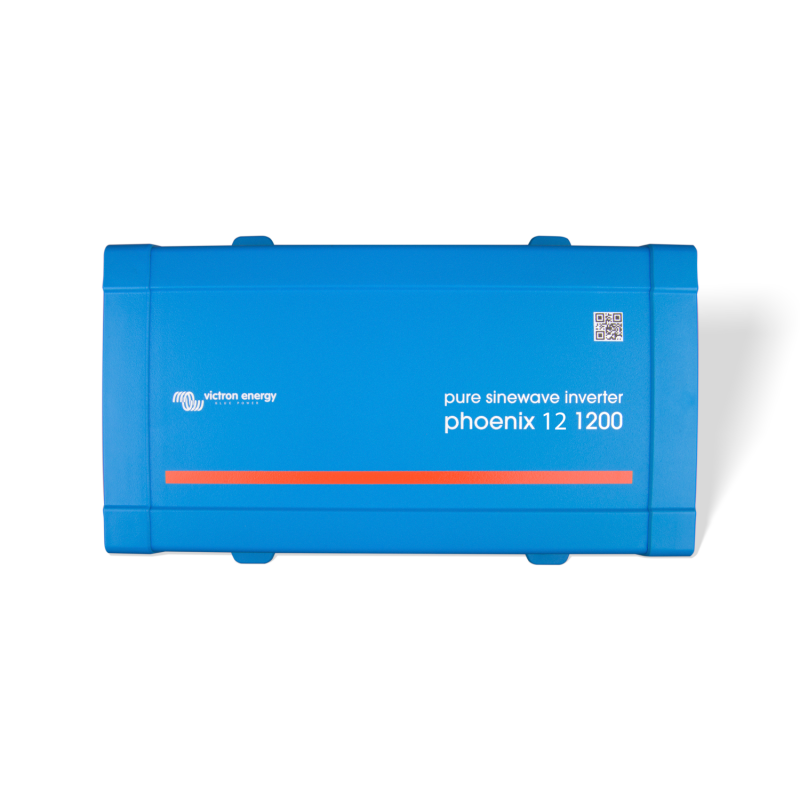

  • Victron 1200VA Phoenix Inverter: Pure sine wave for clean AC power to TVs, stereos, appliances, and computers.

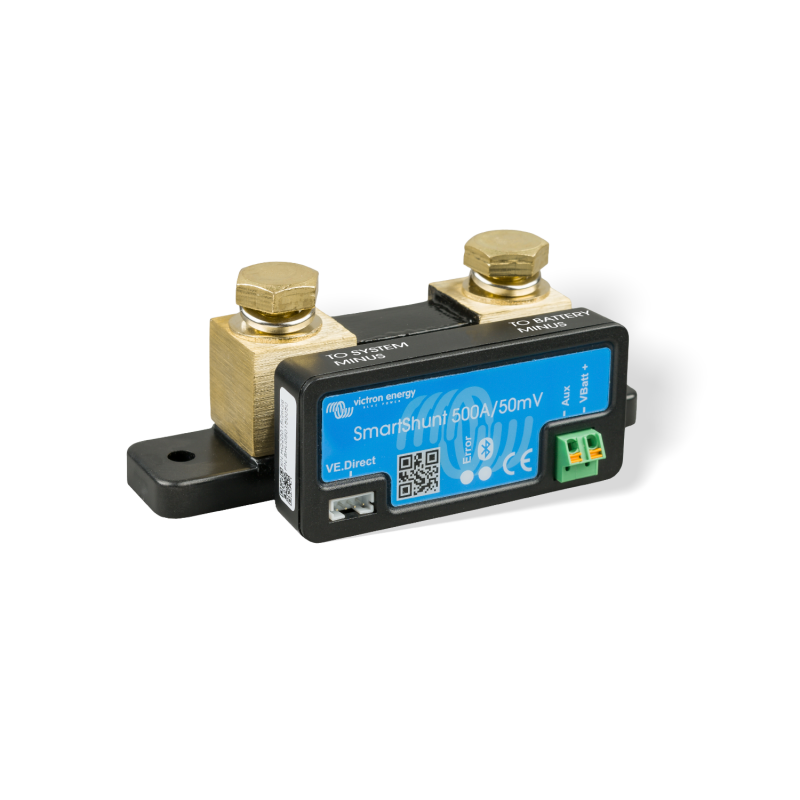

  • Victron Smart Shunt Monitor: 500A/50mV Bluetooth battery monitor for real-time energy tracking via app.
  • High Discharge Capability: 100A continuous / 200A pulse per battery; supports inverters up to 1.28kW.
  • Extended Cycle Life: 5,000+ cycles at 80% DoD; ultra-low self-discharge for standby.
  • Rugged Durability: IP67-rated batteries, vibration-resistant; operates -4°F to 140°F.
  • Eco-Friendly: Non-toxic LiFePO4 chemistry, recyclable, zero maintenance.
  • 11-Year Battery Warranty: Backed by Dakota Lithium; 25-year on Zamp solar.

Specifications at a Glance:

  • Nominal Capacity: 200Ah at 12.8V (2.56kWh).
  • Nominal Voltage: 12.8V.
  • Charge Voltage: 14.4V–14.6V; Max Charge Current: 100A (50A per battery).
  • Discharge: 100A continuous / 200A pulse (10s); Low Voltage Cutoff: 10V.
  • Cycle Life: 5,000+ at 80% DoD; Operating Temperature: Charge 32°F–113°F / Discharge -4°F–140°F.
  • Solar Input: Up to 700W expandable; 40A PWM controller.
  • Charger Specs: Victron Orion-TR 12/12-18A isolated, adaptive 3-stage, Bluetooth.
  • Inverter Specs: Victron Phoenix 1200VA pure sine wave.
  • Certifications: UN38.3, UL1642 (cells), CE, RoHS.
  • Dimensions (per battery): 10.23" L x 6.60" W x 8.66" H (260 x 169 x 215 mm); Weight (per battery): 27.55 lbs (12.5 kg); Total Bundle Weight: ~70 lbs (including components).

Pair this system with additional Zamp panels or Victron accessories for expanded off-grid capability. Whether for RV boondocking, marine solar storage, or VanLife, it delivers unmatched efficiency. Order now and experience Dakota Lithium’s aerospace-grade engineering—stocked and ready to ship from dakotalithium.com!
