Shop Lithium Ion Batteries

DL+ 24V 60Ah Deep Cycle Trolling Motor Battery Set

Model #: DL+ 24V 60Ah SKU: DL+ 24V 60Ah Set

Quantity
Price $1,230.00 +Add to wishlist +Add to gift registry

Product Details

Dakota Lithium DL+ 24V 60Ah Deep Cycle LiFePO4 Trolling Motor Battery Set

Dakota Lithium DL+ 24V 60Ah Deep Cycle LiFePO4 Trolling Motor Battery Set (Model: DL+ 24V 60Ah) – High-Performance Power Solution for Trolling Motors, Marine, Golf Carts, Solar, and Off-Grid Systems

Fish from morning to night with the Dakota Lithium DL+ 24V 60Ah Deep Cycle LiFePO4 Trolling Motor Battery Set (Part No: DL+ 24V 60Ah), a complete kit of two 12V 60Ah dual-purpose batteries wired in series for seamless 24V operation. This set delivers 60Ah of reliable LiFePO4 power at 25.6V (1.38kWh), offering twice the usable capacity of lead-acid batteries at half the weight (35.2 lbs total), with over 5,000 cycles at 80% DoD. Featuring integrated BMS for safety and efficiency, Internal Even-Heat Technology for cold-weather charging down to -20°F, and 1,000 CCA per battery for dual-purpose starting and deep cycle use, it supports high-discharge rates up to 60A continuous, making it ideal for 24V trolling motors (<80 lb thrust), golf carts, electric outboards, solar storage, or off-grid setups requiring maintenance-free, long-lasting performance.

Key Features:

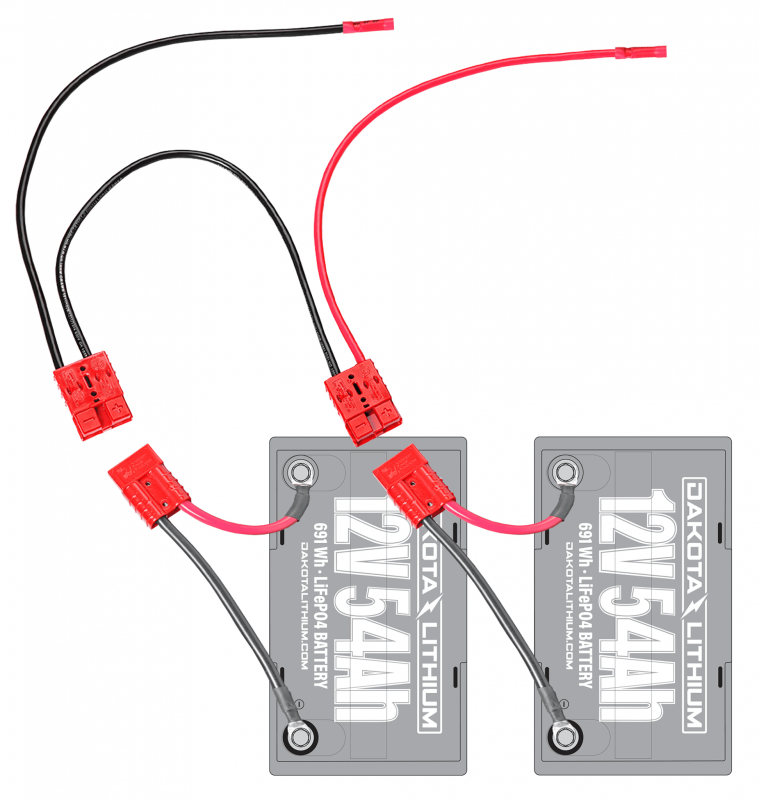

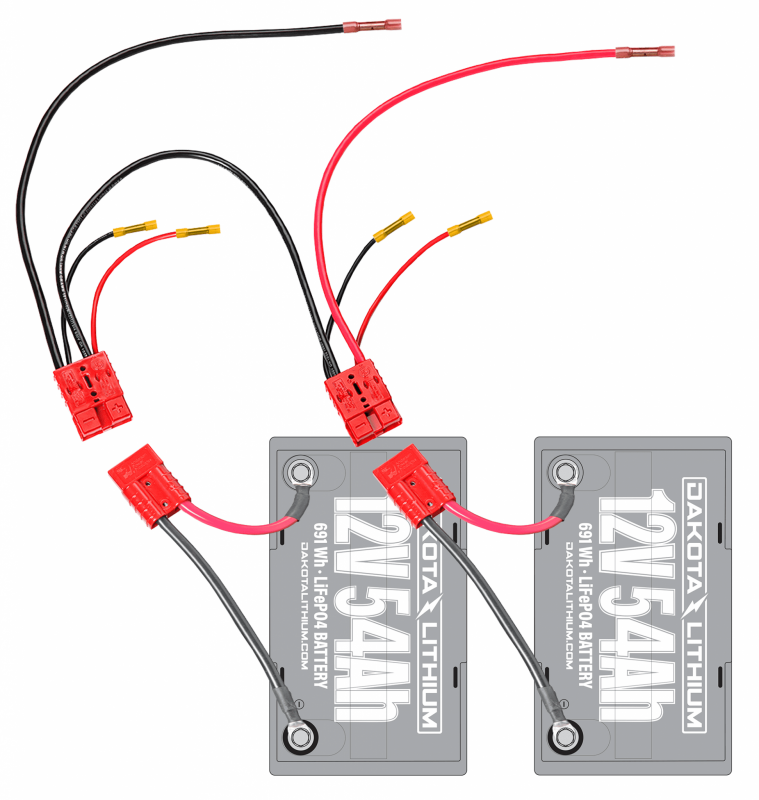

  • Complete Set Design: Two 12V 60Ah LiFePO4 batteries pre-wired in series for drop-in 24V compatibility; replaces traditional lead-acid packs with zero modifications.
  • Integrated BMS: Protects against overcharge, over-discharge, short-circuit, and thermal issues; ensures cell balancing for maximum longevity.
  • High Discharge Capability: 60A continuous / 100A pulse (10s); handles up to 120A motor controllers with 1,000 CCA for reliable starts.
  • Extended Cycle Life: 5,000+ cycles at 80% DoD, with low self-discharge for reliable standby power.
  • Versatile Compatibility: Drop-in replacement for most 24V trolling motors and marine systems; supports parallel configurations; compatible with 24V LiFePO4 chargers (5A recommended).
  • Rugged Durability: IP67-rated enclosure, vibration-resistant for marine and off-road use; operates from -20°F to 120°F with internal heating.
  • Eco-Friendly: Non-toxic LiFePO4 chemistry, recyclable, and zero maintenance compared to lead-acid alternatives.
  • 11-Year Warranty: Backed by Dakota Lithium’s commitment to quality in aerospace and defense-grade applications.

Specifications at a Glance:

  • Nominal Capacity: 60Ah at 25.6V (1.38kWh).
  • Nominal Voltage: 25.6V.
  • Charge Voltage: 29.2V; Max Charge Current: 15A.
  • Discharge: 60A continuous / 100A pulse (10s); Low Voltage Cutoff: 20V.
  • Cycle Life: 5,000+ at 80% DoD; Operating Temperature: Charge 32°F–113°F / Discharge -20°F–120°F.
  • Certifications: UN38.3, CE, RoHS.
  • Dimensions (per battery): 9.01" L x 5.43" W x 8.38" H (229 x 138 x 213 mm); Weight (per battery): 17.6 lbs (8 kg); Total Set Weight: 35.2 lbs (16 kg).

Pair this battery set with Dakota Lithium 24V chargers or solar controllers for a complete, high-efficiency power ecosystem. Whether powering trolling motors, golf carts, or solar arrays, the DL+ 24V 60Ah Set delivers unmatched reliability and range. Order now and experience Dakota Lithium’s aerospace-grade engineering—stocked and ready to ship from dakotalithium.com!
