DL+ 12V 25Ah LiFePO4 Battery Twin Pack

Model #: DL+ 12V 25Ah SKU: DL+ 12V 25Ah Twin Pack

Quantity
Price $510.00 +Add to wishlist +Add to gift registry

Product Details

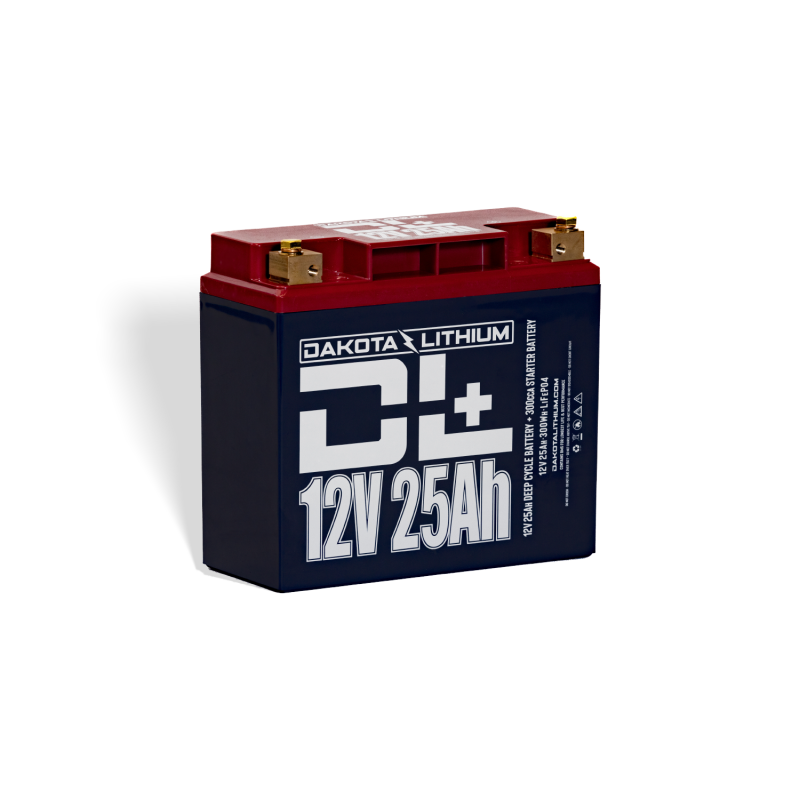

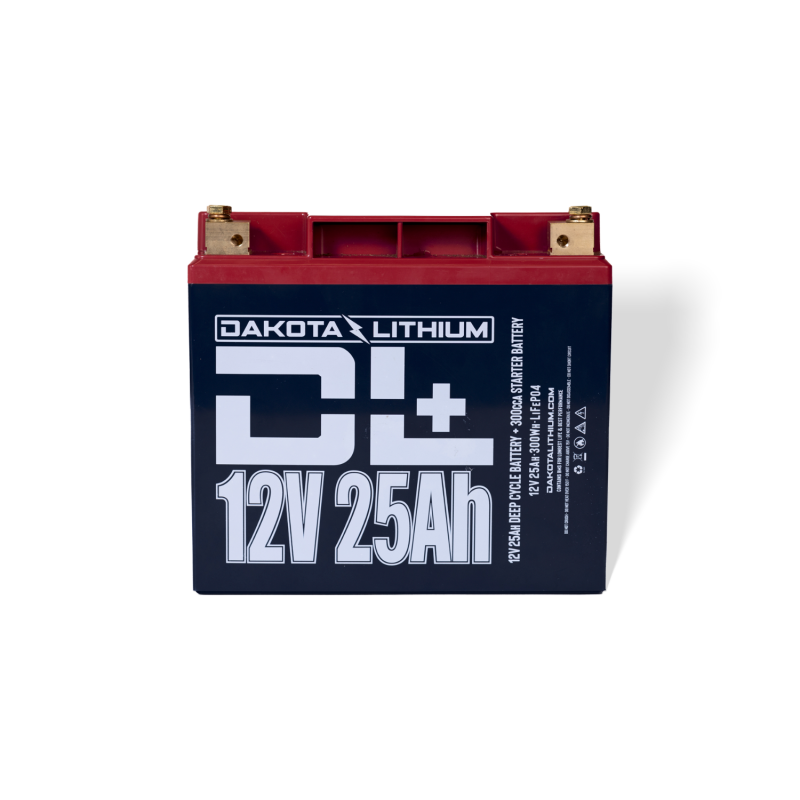

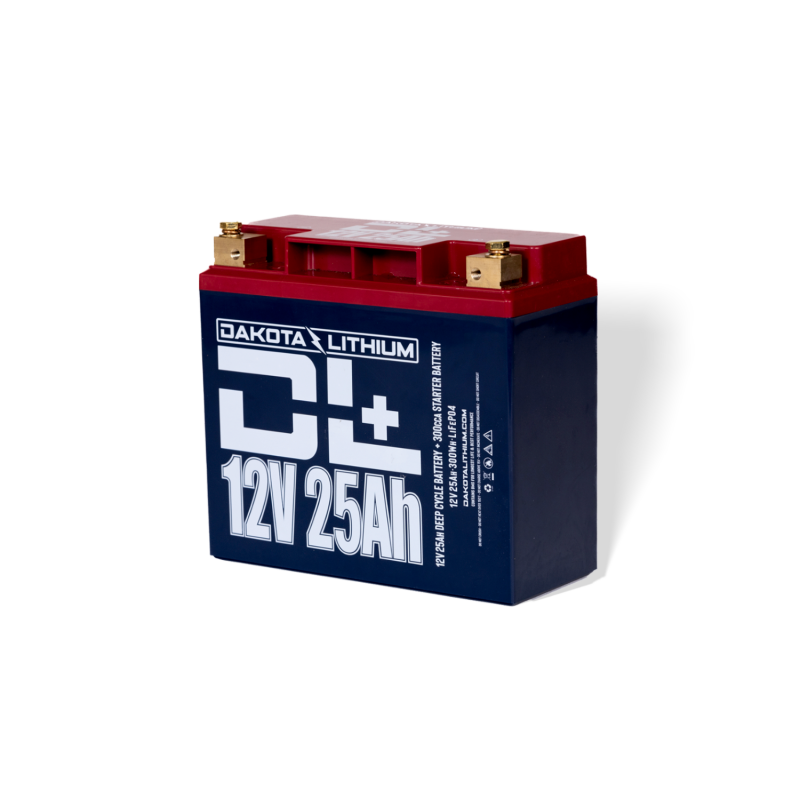

Dakota Lithium DL+ 12V 25Ah LiFePO4 Battery Twin Pack

Dakota Lithium DL+ 12V 25Ah LiFePO4 Battery Twin Pack (Model: DL+ 12V 25Ah) – High-Performance Power Solution for Forward-Facing Sonar, Mobility Scooters, Marine Electronics, RV, Solar, and Off-Grid Applications

This twin pack combines two 12V 25Ah LiFePO4 batteries wired in parallel to create a compact 50Ah system, delivering reliable, lightweight power for forward-facing sonar, mobility scooters, small electronics, and other 12V devices. Engineered with Lithium Iron Phosphate (LiFePO4) technology, it offers twice the power, half the weight, and up to four times the lifespan of traditional sealed lead-acid batteries, with a flat voltage curve for consistent power output until fully discharged. Featuring an active BMS for safety and efficiency, including cell balancing, low/high voltage cutoff, short-circuit, and high-temperature protection, it supports up to 30A continuous discharge, making it ideal for advanced marine electronics, portable medical equipment, camping gear, lighting, or small off-grid 12V devices requiring maintenance-free performance.

Key Features:

  • Twin Pack Value: Two 12V 25Ah batteries in parallel for a 50Ah system, providing extended runtime in a compact package.
  • Active BMS Protection: Safeguards against overcharge, over-discharge, short-circuit, and thermal issues; ensures cell balancing for maximum longevity.
  • High Discharge Capability: 30A continuous / 300A peak (<5s) for powering inverters up to 384W or high-demand equipment.
  • Extended Cycle Life: 5,000+ cycles at 80% DoD, with low self-discharge for reliable standby power.
  • Versatile Compatibility: Drop-in replacement for UB12250 and similar SLA batteries; supports series/parallel configurations; M6 terminals (5 ft-lbs torque recommended).
  • Rugged Durability: IP67-rated enclosure, vibration-resistant for marine, off-road, and outdoor use; operates from -4°F to 140°F.
  • Eco-Friendly: Non-toxic LiFePO4 chemistry, recyclable, and zero maintenance compared to lead-acid alternatives.
  • 11-Year Warranty: Backed by Dakota Lithium’s commitment to quality in aerospace and defense-grade applications.

Specifications at a Glance:

  • Nominal Capacity: 50Ah at 12.8V (640Wh) (two 25Ah batteries in parallel).
  • Nominal Voltage: 12.8V.
  • Charge Voltage: 14.4V–14.6V; Max Charge Current: 30A.
  • Discharge: 30A continuous / 300A peak (<5s); Low Voltage Cutoff: 10V.
  • Cycle Life: 5,000+ at 80% DoD; Operating Temperature: Charge 32°F–113°F / Discharge -4°F–140°F.
  • Certifications: UN38.3, CE, RoHS.
  • Dimensions (per battery): 7.125" L x 3.03" W x 6.69" H (181 x 77 x 170 mm); Weight (per battery): 6.4 lbs (2.9 kg); Total Pack Weight: 12.8 lbs (5.8 kg).

Pair this battery twin pack with Dakota Lithium 12V chargers or solar controllers for a complete, high-efficiency power ecosystem. Whether powering forward-facing sonar, mobility scooters, or marine electronics, the DL+ 12V 25Ah Twin Pack delivers unmatched reliability and runtime. Order now and experience Dakota Lithium’s aerospace-grade engineering—stocked and ready to ship from dakotalithium.com!
