Overview:
- Portable & Onboard Options
- Output: 800W - 24VDC @ 33.3A, 36VDC @ 22.48VDC, & 48VDC @ 16.7A
- AC Universal Input (85-270 VAC 50/60HZ)
- CAN Capable
- PROView Link App Enabled to receive over the air updates and more
- Dimensions: L10" x W7.15" x H4"
- Weight: 11 LBS
- Developed to be interleaved for higher output requirements
- US Designed and Assembled
PRELIMINARY SPECIFICATIONS:
INPUT: 100 - 240VAC 50/60HZ
POWER FACTOR (PF): >0.98
OUTPUT: 800W: 24VDC@33A
PEAK EFFICIENCY: 95%
COMMUNICATIONS: CAN, BTLE, UART, LEDs

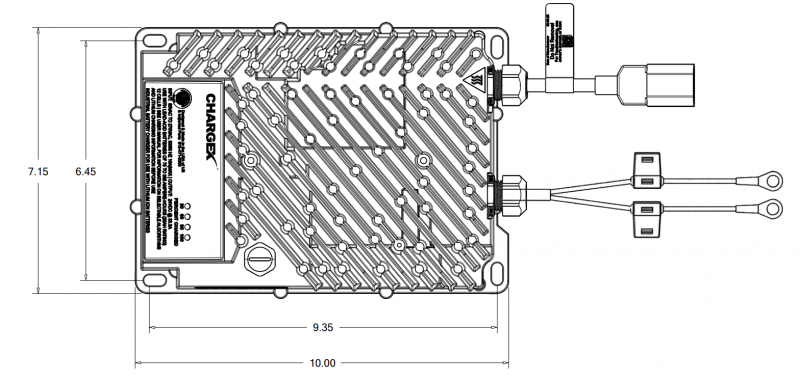

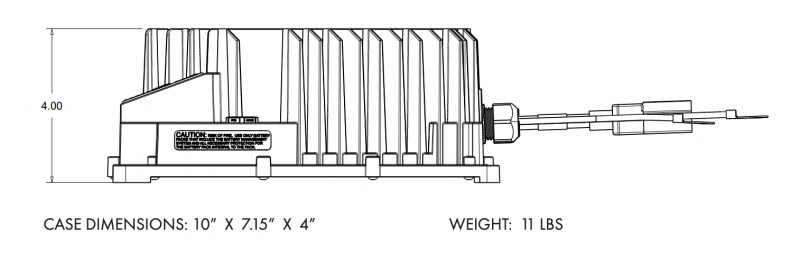

DIMENSIONS: 10.00" X 7.13" X 4.00"
WEIGHT: 11.4 LB
AC INPUT CONNECTOR: IEC 320 C14 250V 15A
DC OUTPUT CONNECTOR: RING TERMINALS .412" ID
INGRESS PROTECTION: IP67 (ENCLOSURE)
RELIABILITY AND FAILURE TESTING: HALT, RANDOM VIBRATION,
THERMAL SHOCK, WATER IMMERSION, WATER IMMUNITY,
TEMPERATURE CYCLE AND HUMIDITY TEST
OPERATING TEMPERTURE RANGE: -40 TO +65 _C
STORAGE TEMPERATURE RANGE: -40 TO +85 _C
PENDING SAFETY: UL1564, CSA 107.2, EN 60335-2-29, AZ/NZS60335 (RSM)
EMISSIONS: FCC PART 15 A AND B / ICES 003 CLASS A, EN55011, EN 61000-6-4
IMMUNITY: EN 61000-3-2, EN 61000-3-3, EN 61000-6-2
DESIGN FEATURES AND AVAILABLE OPTIONS:
-REVERSE POLARITY PROECTION, OTP, OCP, OVP, CHARGE TIMEOUT PROTECTION
-BTLE FOR REAL-TIME DATA, HISTORICAL DATA, SOC/SOH MONITORING, FLEET
CONNECTIVITY, FREE OVER-THE-AIR UPDATES FOR NEW ALGORITHMS
-ISOLATED CAN (J1939, CANOpen, NMEA2000), UART, BATTERY TEMPERATURE SENSOR,
REMOTE DISPLAY INDICATOR (RDI), INTERLOCK (15.0A) NO/NC, FANLESS
-DESIGNED TO REDUCE THE NUMBER OF CRITICALLY SOURCED COMPONENTS
-SELECTABLE CHARGING ALGORITHMS
LOW VOLTAGE TURN ON*:
---24V - 4V
*0V WAKE UP AVAILABLE ON SOME LITHIUM CHARGE PROFILES
