LiTime 3000 Watt Pure Sine Wave Inverter Charger
Model #: 12V 3kW Inverter Charger SKU: INVCHA-12V3KW-H
Product Details
Product Description for LiTime 3000 Watt Pure Sine Wave Inverter Charger
LiTime 3000W 12V Pure Sine Wave Inverter Charger – All-in-One UPS Power Solution for RV, Solar, Marine, Home Backup, and Off-Grid Systems
Elevate your power management with the LiTime 3000W 12V Pure Sine Wave Inverter Charger, an all-in-one device combining inverter, charger, and UPS functionality to save over 50% space and simplify installation. Delivering 3000W continuous power with a 9000W peak surge and pure sine wave output (≤5% distortion), it converts 12V DC to stable 120V AC for sensitive electronics like refrigerators, coffee machines, and tools. Compatible with all 12V batteries (LiFePO4, GEL, AGM, SLA, CAL), it features adjustable charging current (5A-45A) and seamless 10ms UPS switching during outages. Remote monitoring via 23ft cable and LCD screen allows easy power on/off and status checks, while two modes (inverter/grid) optimize energy use. Comprehensive protections against overload, high/low voltage, high temperature, short circuit, and AC backflow ensure safety, with CE, FCC, and RoHS certifications for reliable performance. Key Features:

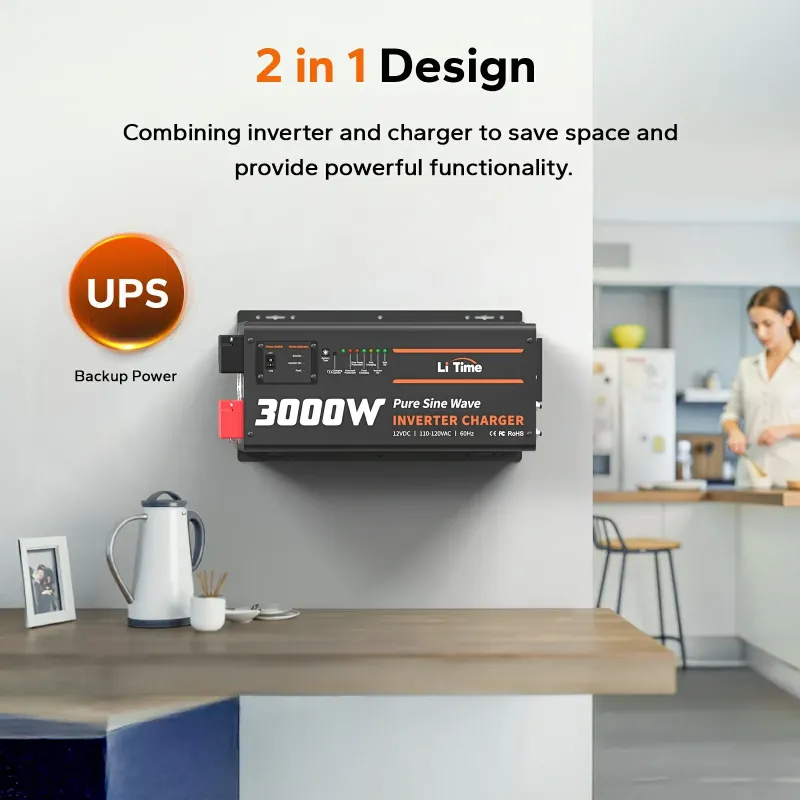

- All-in-One Design: Integrates inverter, charger, and UPS for simplified wiring and 50% space savings.

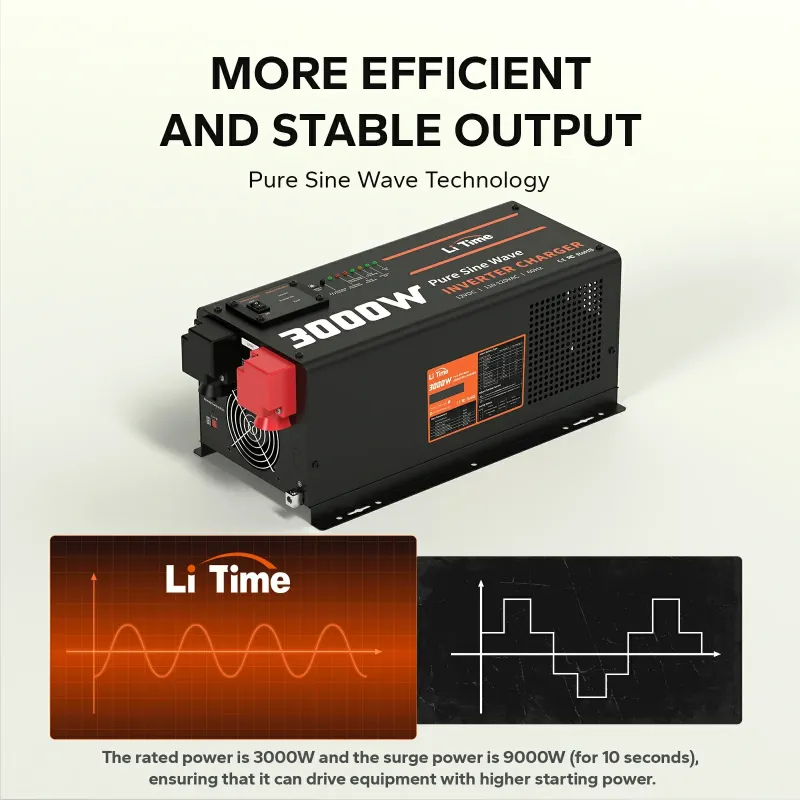

- Pure Sine Wave Output: Clean 120V AC with ≤5% distortion for sensitive appliances and inductive loads.

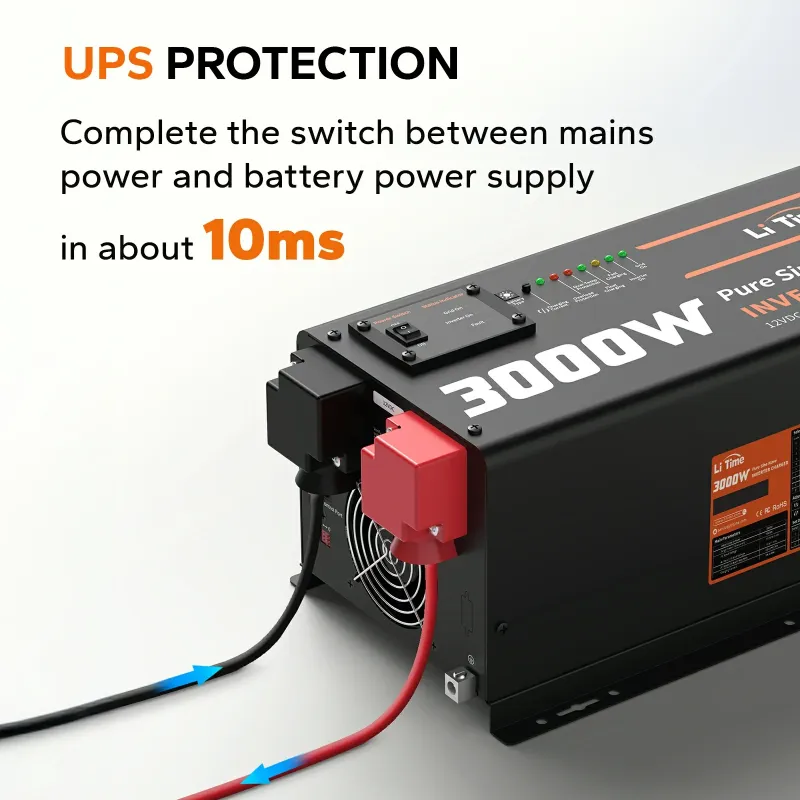

- 10ms UPS Switching: Seamless transition from AC to battery during outages for uninterrupted power.

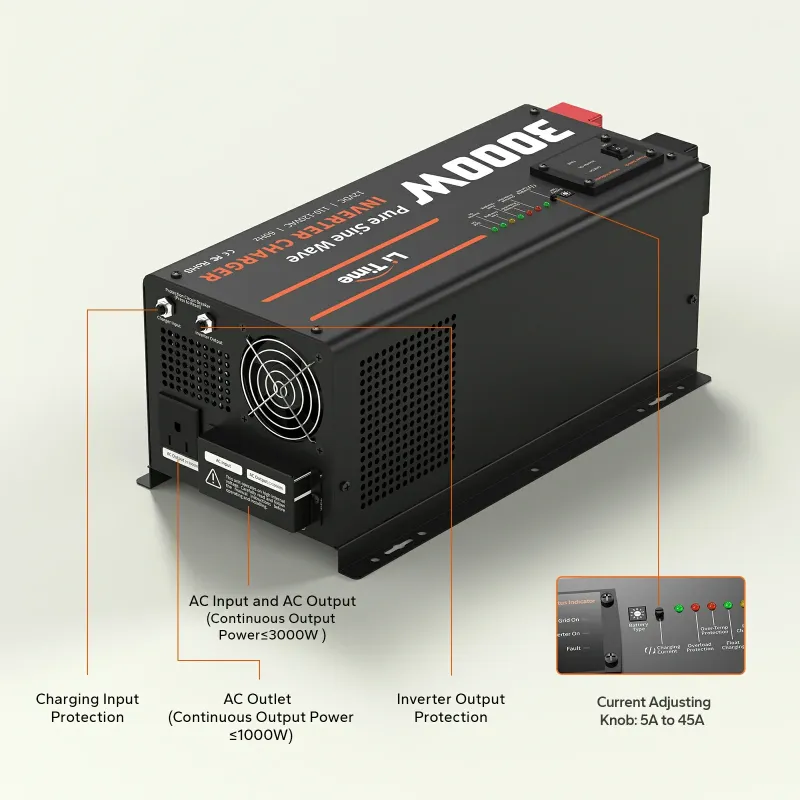

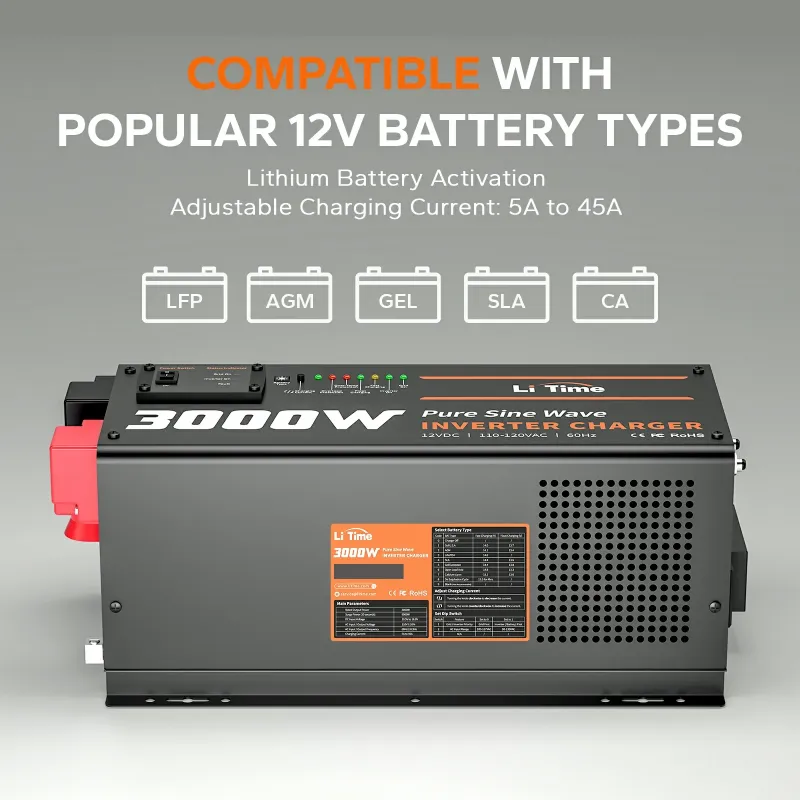

- Adjustable Charging: 5A-45A current for all 12V battery types, with 3-stage charging (bulk, absorption, float).

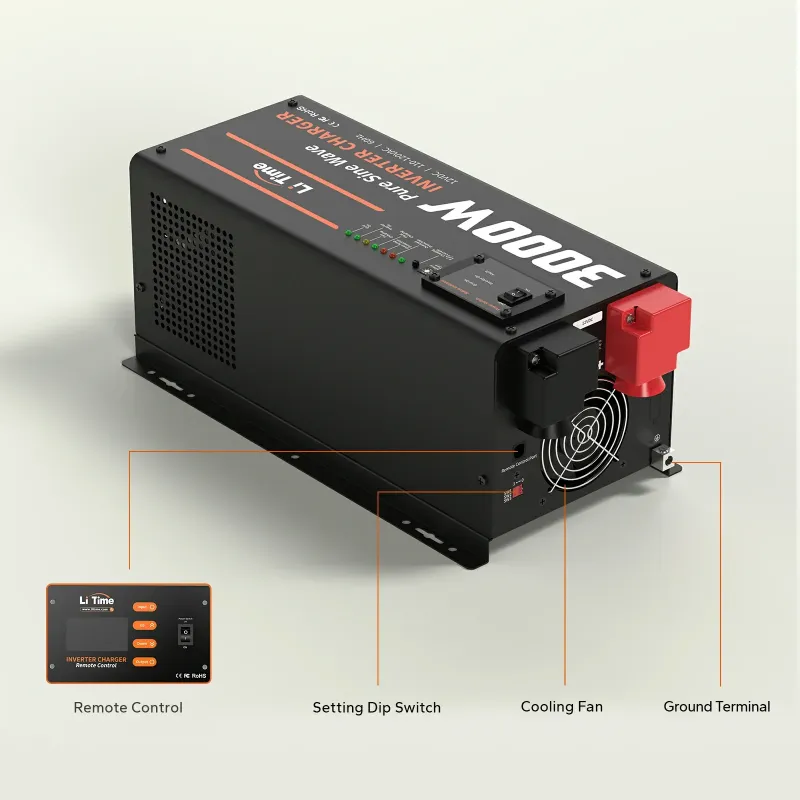

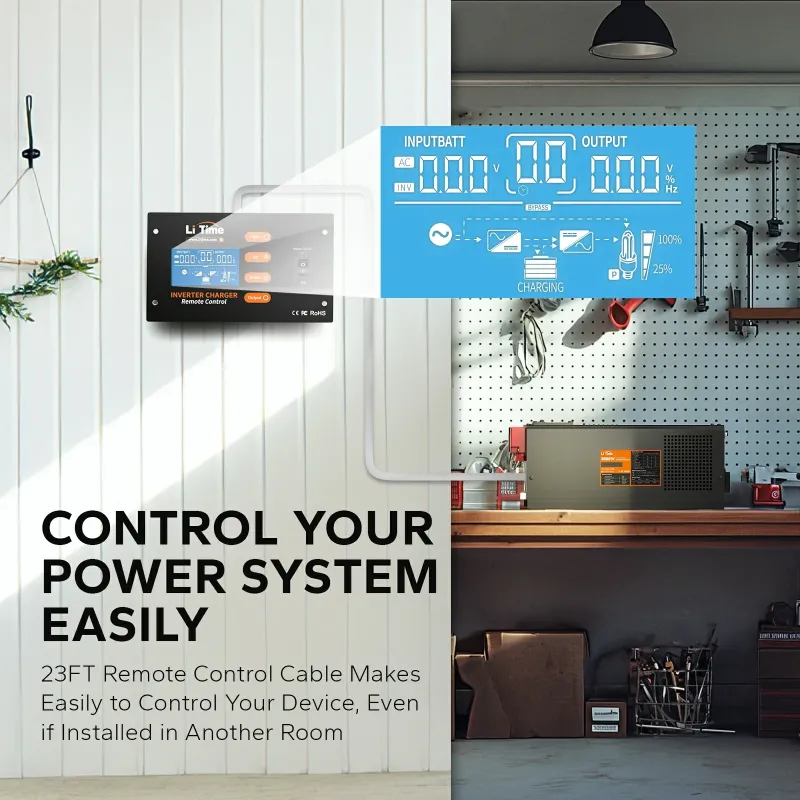

- Remote Monitoring: 23ft cable and LCD for real-time status and remote power control.

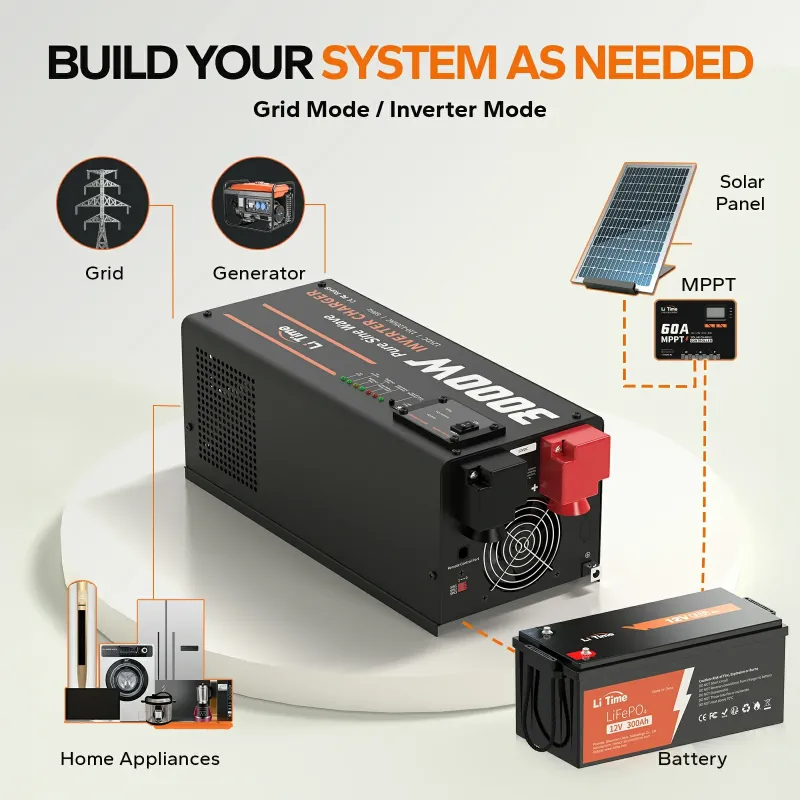

- Dual Modes: Inverter mode for off-grid or grid mode for energy optimization.
- Comprehensive Protections: Overload, high/low voltage, high temperature, short circuit, AC backflow, and bypass overcurrent safeguards.
- Smart Alarm System: Visual and audible alerts for issues, with quiet fan operation.
Specifications at a Glance:
- Rated Output Power: 3000W; Surge Power: 9000W (10 seconds).
- AC Output Voltage: 110V ± 10%; Frequency: 60Hz ± 0.3Hz; Wave Form: Pure Sine Wave.
- DC Input Voltage: 10.5V to 16.0V; No Load Consumption: <38W.
- Charger Input: 110V ± 10%; Output Current: 5A to 45A.
- Operating Temperature: 14°F to 104°F (-10°C to 40°C); Storage: -4°F to 122°F (-20°C to 50°C).

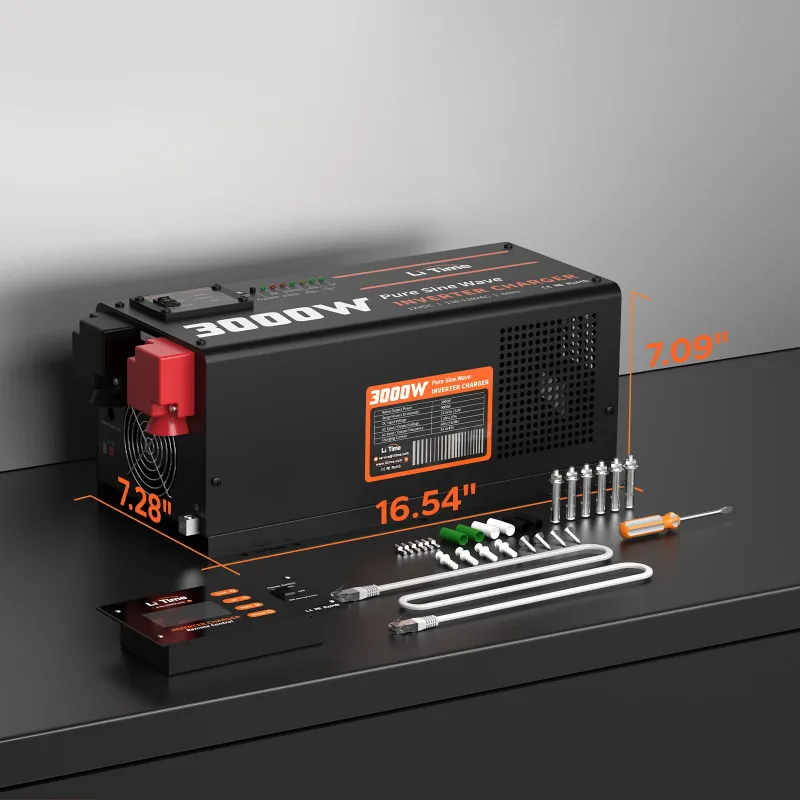

- Dimensions: 16.54 x 7.28 x 7.09 in (420 x 185 x 180 mm); Weight: 52 lbs (23.6 kg).
- Certifications: CE, FCC, RoHS.
Pair this inverter charger with our premium LiFePO4 batteries for a complete, high-efficiency power ecosystem. Whether for RV trips, home backup, marine use, or solar setups, the LiTime 3000W inverter charger delivers unmatched reliability and peace of mind. Order now and experience LiTime’s innovative power technology—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
