LiTime 3 Bank 12V 10A Battery Charger
SKU: 12V10A-BCHA-3BANK-WP-Y
Product Details
Product Description for LiTime 3 Bank 12V 10A Battery Charger
LiTime 3 Bank 12V 10A Waterproof Lithium Battery Charger – Efficient Multi-Bank 3-Stage Charging Solution for RV, Marine, Trolling Motors, Boats, Camping, and Off-Grid Systems

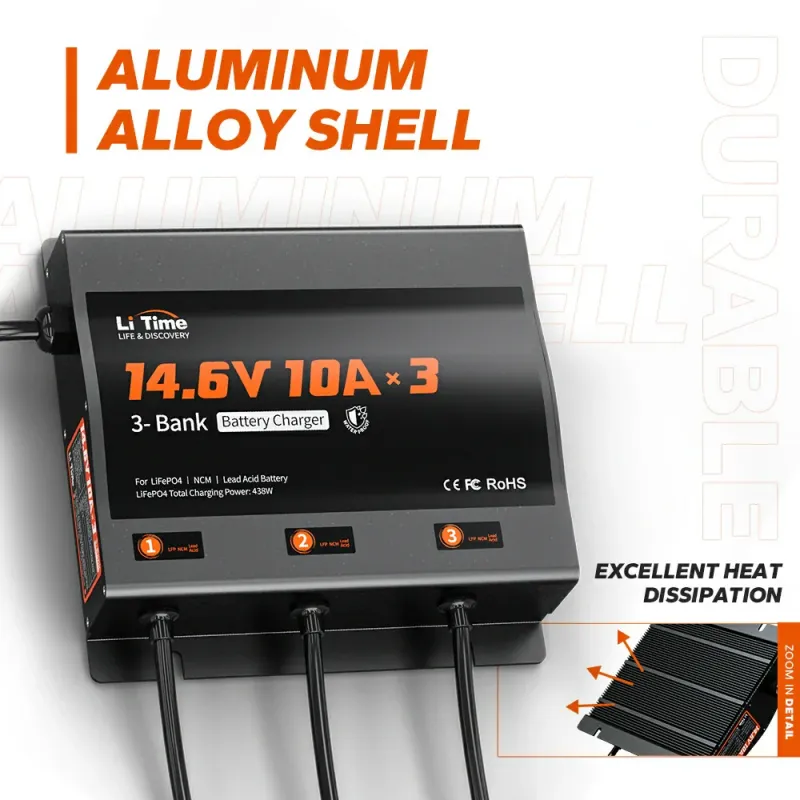

Elevate your battery maintenance with the LiTime 3 Bank 12V 10A waterproof LiFePO4 charger, a compact, high-performance multi-bank charger designed for safe and efficient simultaneous charging of three 12V LiFePO4, NCM, or lead-acid batteries in RVs, trolling motors, boats, camping gear, off-grid cabins, and home storage setups. Featuring a 3-stage charging process (pre-charge, constant current, and constant voltage) with 14.6V DC output and 10A current per bank, it fully charges a 12V 50Ah battery in just 5 hours while activating BMS-protected lithium batteries in 3 seconds. Equipped with LED indicators for standby, charging, full charge, and error status, plus a durable aluminum alloy shell with cooling fan, this charger ensures reliable performance with multilevel protections against over-temperature, reverse polarity, short circuit, and over-voltage. Compatible with 100-240V AC input, it includes M8 terminals and 15A fuses for secure connections. Key Features:

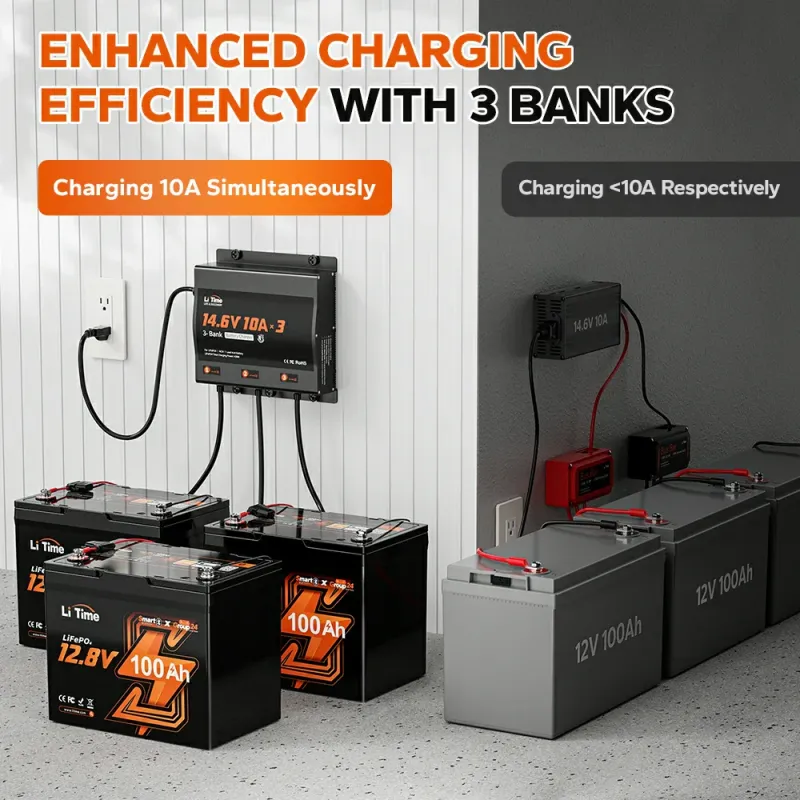

- Triple 10A Output: Charges three 12V batteries simultaneously, saving up to 2/3 charging time for multi-battery setups.
- 3-Stage Smart Charging: Pre-charge, CC, and CV stages for optimal battery health and fast charging without overcharge risks.
- Battery Activation Function: Wakes up BMS-protected lithium batteries in just 3 seconds to extend service life.
- IP65 Waterproof Rating: Resists water splashes and rain for safe use in moist environments like marine or outdoor setups.

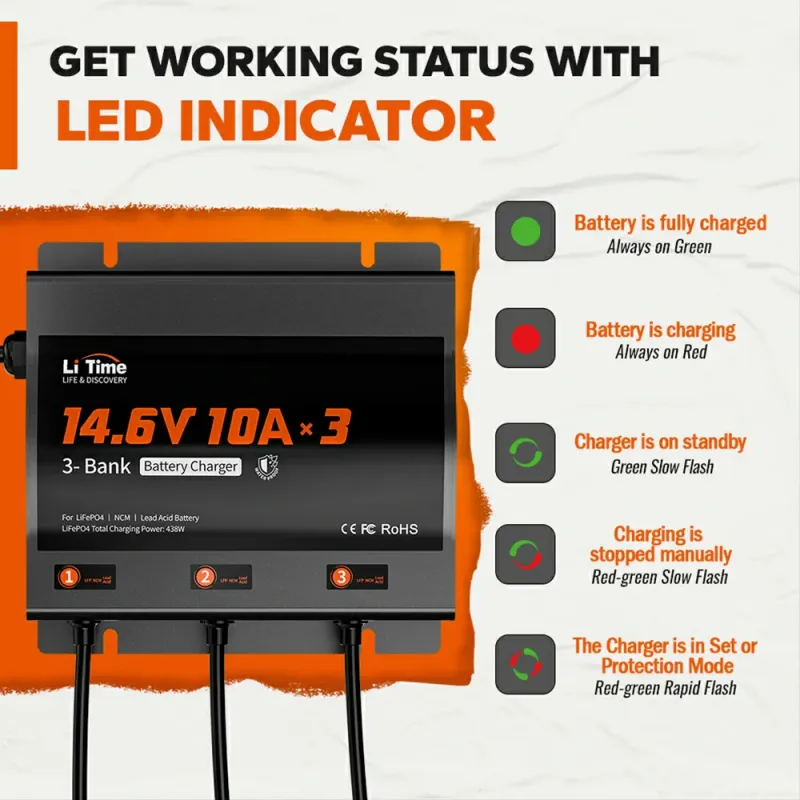

- LED Status Indicators: Clear displays for standby, charging progress, full charge, and error alerts for easy monitoring.

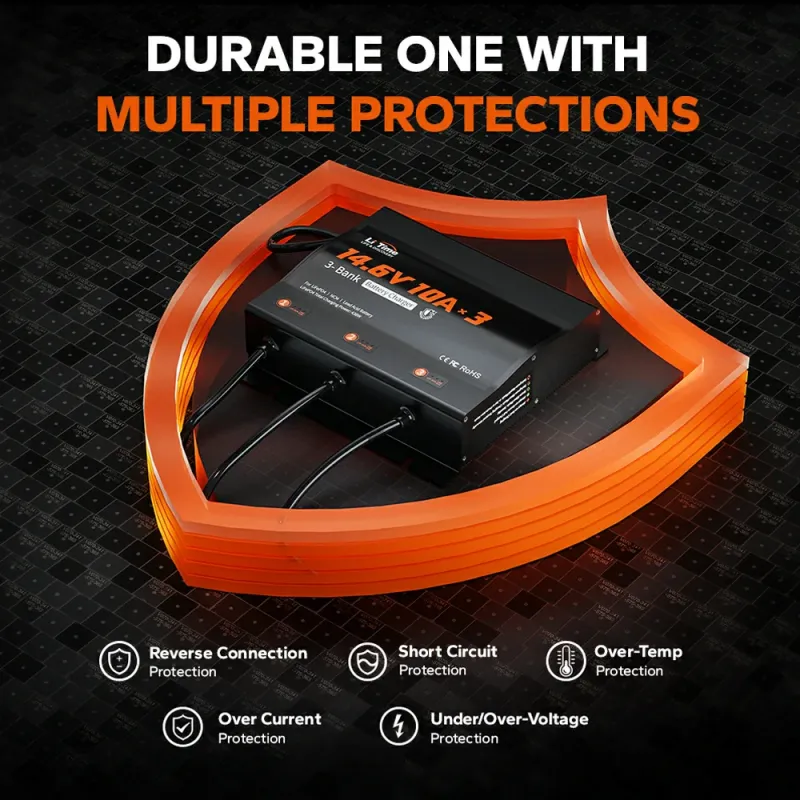

- Multi-Level Safety Protections: Guards against over-temperature, reverse polarity, short circuit, and over-voltage for peace of mind.

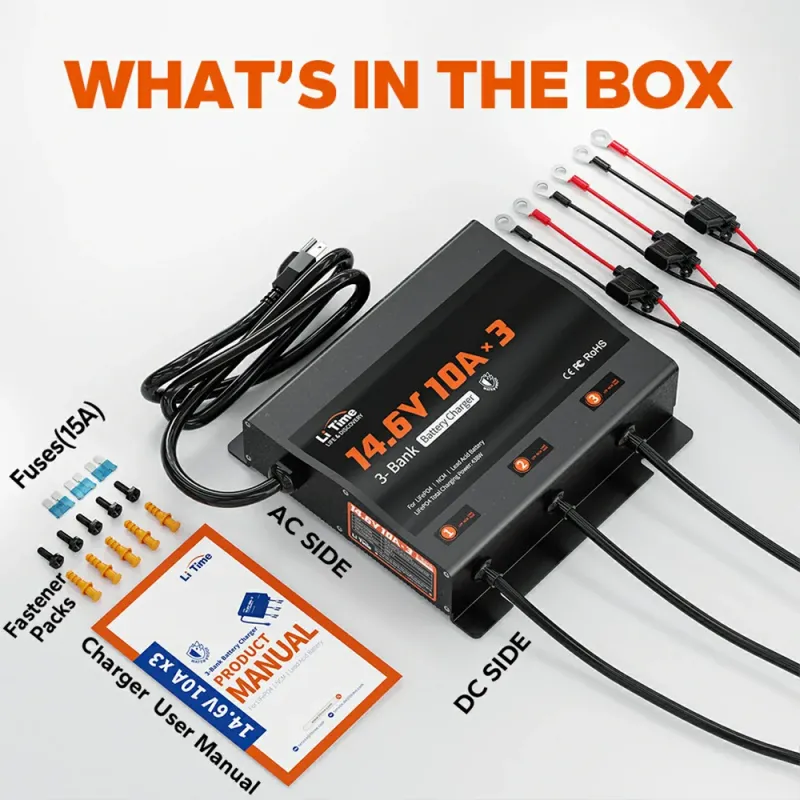

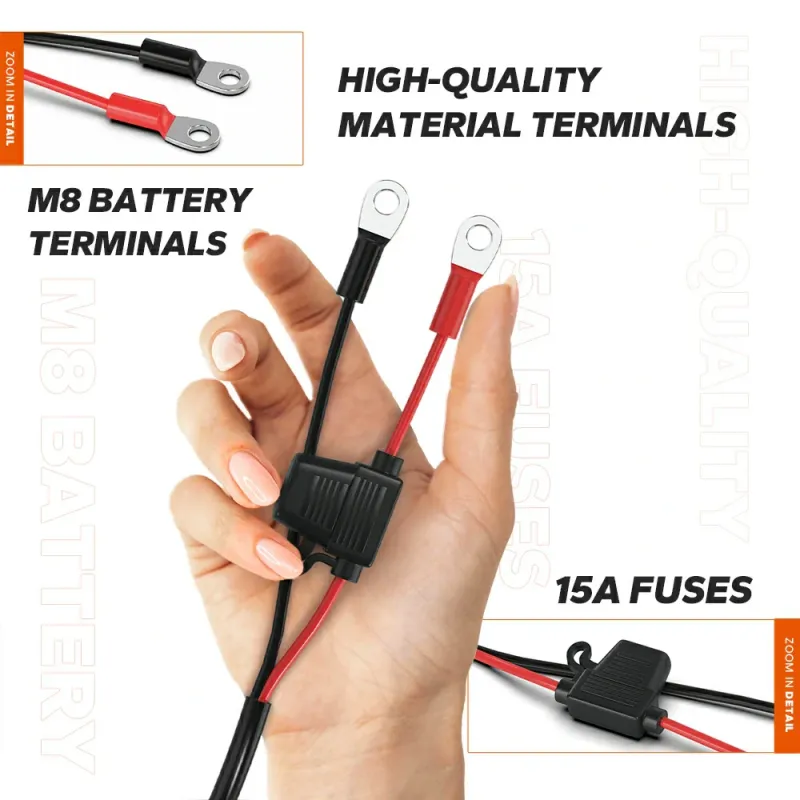

- Versatile Connectivity: M8 terminals and 15A fuses for flexible, secure connections to various battery setups.
- Universal Input: AC 100-240V 50/60Hz compatibility for global use with 78.74-inch input cable and 57.08-inch output cables.
Specifications at a Glance:
- Charger Type: LiFePO4/NCM/Lead Acid Dedicated (3 Bank).

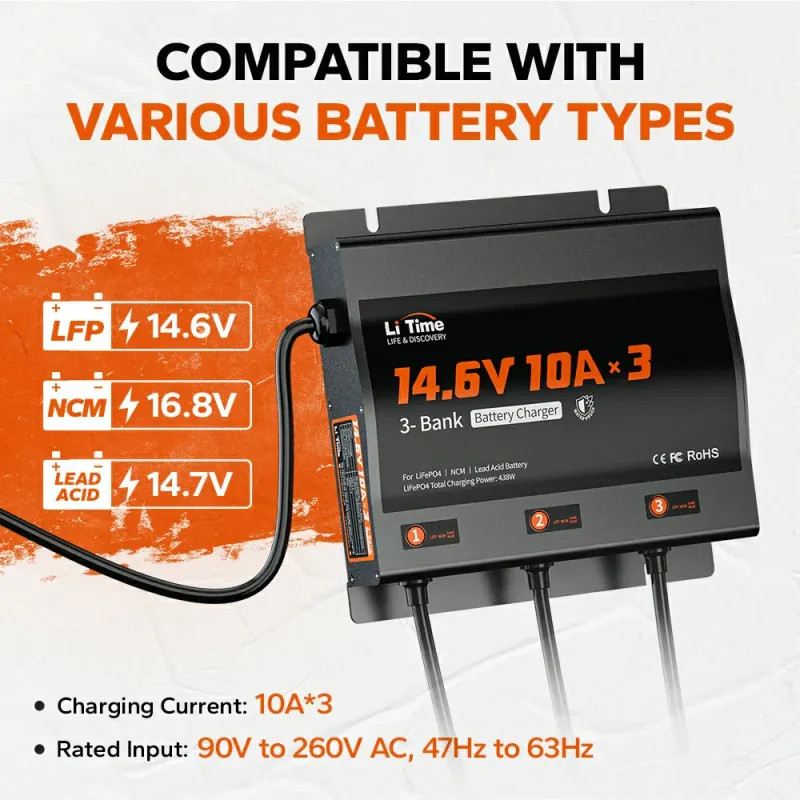

- Output Voltage: 14.6V (LFP), 16.8V (NCM), 14.7V (Lead Acid) per bank.
- Output Current: 10A per bank (30A total).
- Input Voltage: AC 100-240V, 50/60Hz; Max Input Current: 2A.
- Cables: Input 78.74 in; Output 57.08 in each.
- Operating Temperature: -4°F to 104°F (-20°C to 40°C); Storage: -40°F to 158°F (-40°C to 70°C).
- Connector: M8 Terminal / 15A Fuses.
- Certifications: CE, FC, RoHS.

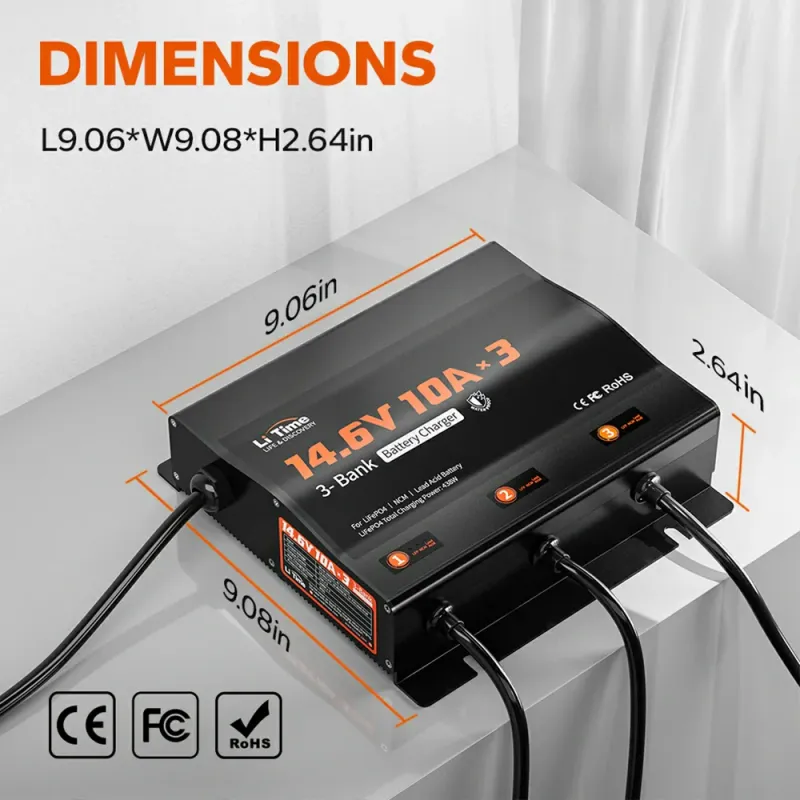

- Dimensions: 9.06 x 9.08 x 2.64 in (230 x 230.6 x 67 mm); Weight: 9.48 lbs (4.3 kg).
Pair this charger with our premium LiFePO4 batteries for a complete, high-efficiency charging ecosystem. Whether maintaining RV power, marine setups, or off-grid systems, the LiTime 3 Bank 12V 10A charger delivers unmatched reliability and peace of mind. Order now and experience LiTime’s innovative charging technology—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
