LiTime 500A Battery Monitor With Shunt
Model #: 500A Battery Monitor SKU: MONITOR500A-B
Product Details
Product Description for LiTime 500A Battery Monitor With Shunt
LiTime 500A Smart Battery Monitor with Shunt – High-Precision Bluetooth Monitoring Solution for 12V/24V/36V/48V/60V/72V/84V/96V Batteries in RV, Solar, Marine, and Off-Grid Systems

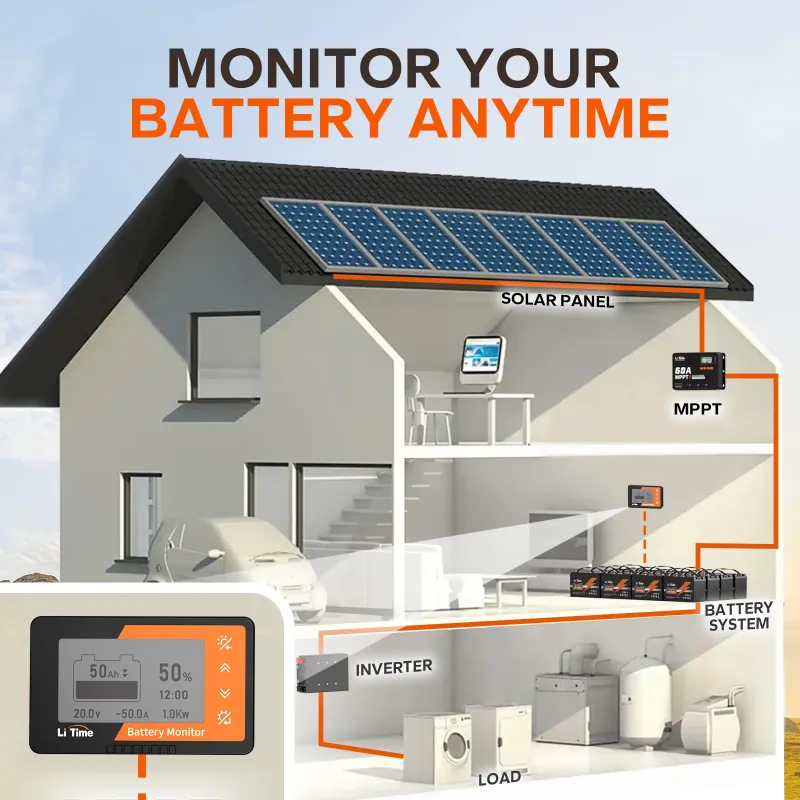

Elevate your battery management with the LiTime 500A Smart Battery Monitor with Shunt, a compact, high-precision device designed to track real-time SOC (State of Charge), voltage, current, power, remaining capacity, and estimated runtime for 12V/24V/36V/48V/60V/72V/84V/96V LiFePO4, lead-acid, and other batteries in RVs, solar setups, marine vessels, trolling motors, off-grid cabins, and home storage. Featuring Bluetooth 5.0 for wireless app monitoring via the LiTime APP (iOS/Android), it displays data on your phone with historical graphs and customizable alerts for low voltage, high current, and low SOC. With 0.01V voltage accuracy, 0.1A current accuracy, and 1% SOC accuracy, the 500A shunt ensures precise readings up to ±500A bidirectional current. Equipped with a backlit LCD screen for standalone viewing, reverse polarity protection, and easy installation (shunt on negative terminal), this monitor supports up to 10 batteries in parallel and operates from -4°F to 140°F (-20°C to 60°C). Key Features:
- Bluetooth 5.0 App Monitoring: Wireless real-time tracking via LiTime APP with SOC, voltage, current, power, capacity, and runtime data; supports historical graphs and low/high alerts.
- High-Precision Shunt: 500A bidirectional current measurement with 0.01V voltage accuracy, 0.1A current accuracy, and 1% SOC accuracy for reliable performance.
- Wide Voltage Compatibility: Supports 12V-96V batteries (LiFePO4, lead-acid, AGM, GEL, Flooded) for versatile use in solar, RV, marine, and off-grid setups.

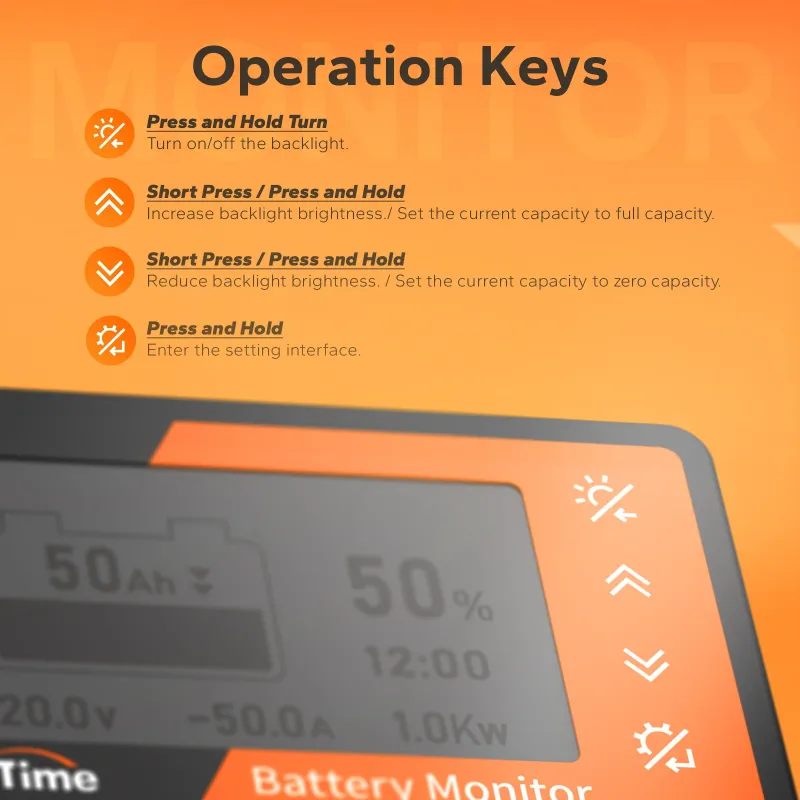

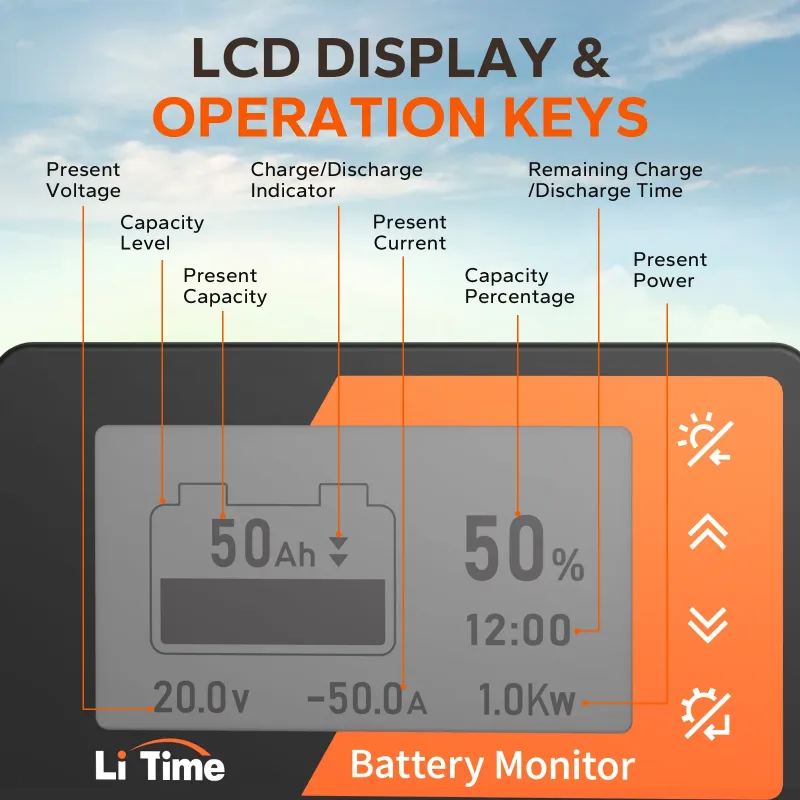

- Backlit LCD Display: Standalone screen shows SOC, voltage, current, power, and capacity for quick checks without the app.
- Reverse Polarity Protection: Built-in safeguards prevent damage from incorrect wiring.

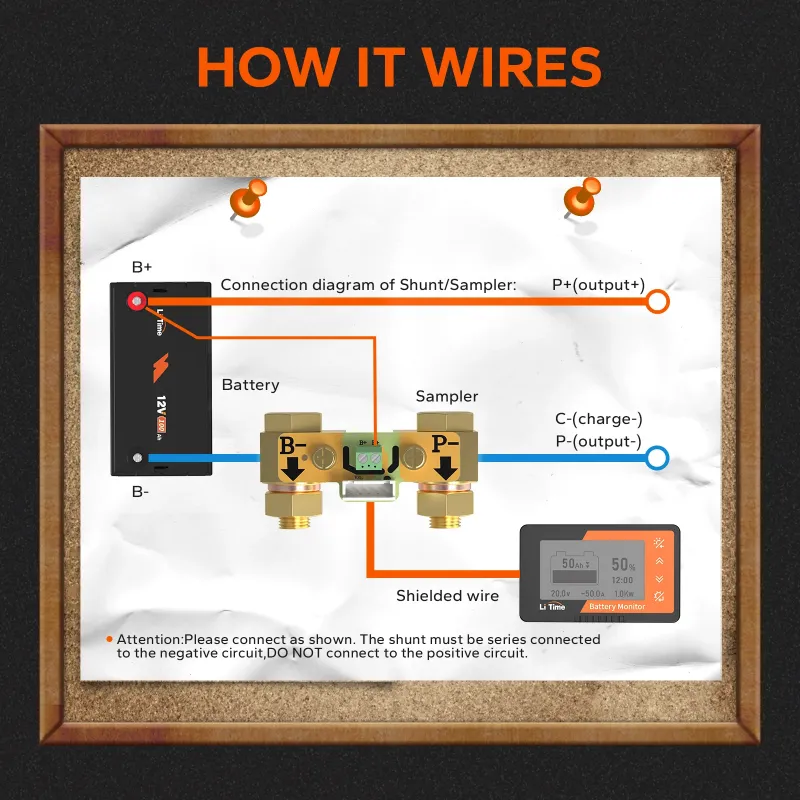

- Easy Installation: Shunt mounts on negative terminal with included cables and mounting hardware; no complex setup required.
- Multi-Battery Support: Monitors up to 10 batteries in parallel for expanded systems.
- Durable & Compact: IP65-rated enclosure operates from -4°F to 140°F (-20°C to 60°C) for rugged outdoor use.
Specifications at a Glance:
- Voltage Range: 12V/24V/36V/48V/60V/72V/84V/96V Auto Detect.
- Current Range: ±500A (bidirectional).
- Accuracy: Voltage ±0.01V; Current ±0.1A; SOC ±1%; Power ±1W.
- Connectivity: Bluetooth 5.0 (APP compatible with iOS/Android).
- Display: Backlit LCD (SOC, voltage, current, power, capacity).
- Operating Temperature: -4°F to 140°F (-20°C to 60°C).

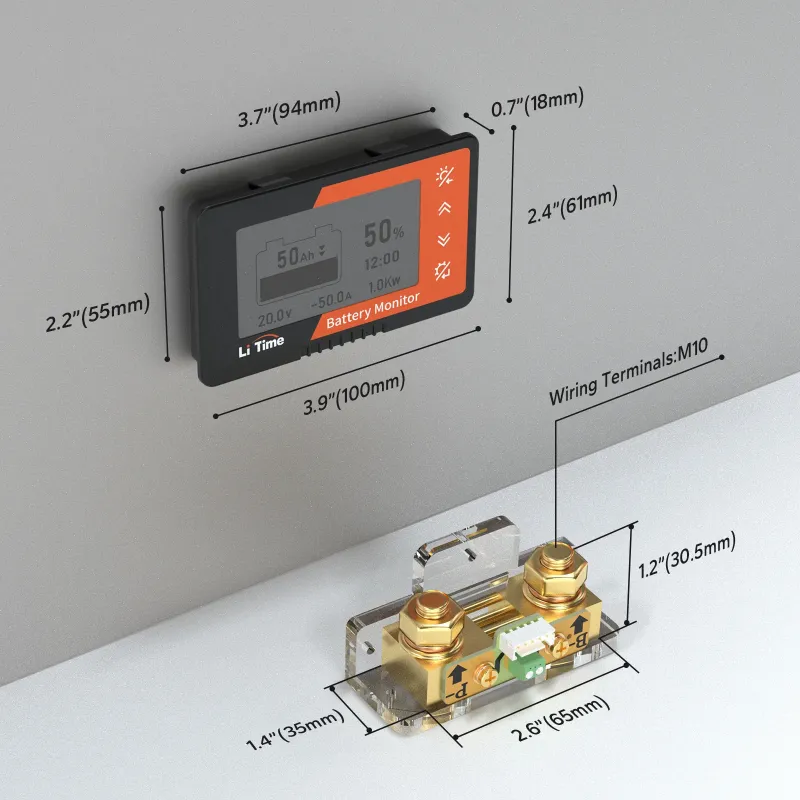

- Dimensions: 4.72 x 2.36 x 1.18 in (120 x 60 x 30 mm); Weight: 0.55 lbs (0.25 kg).

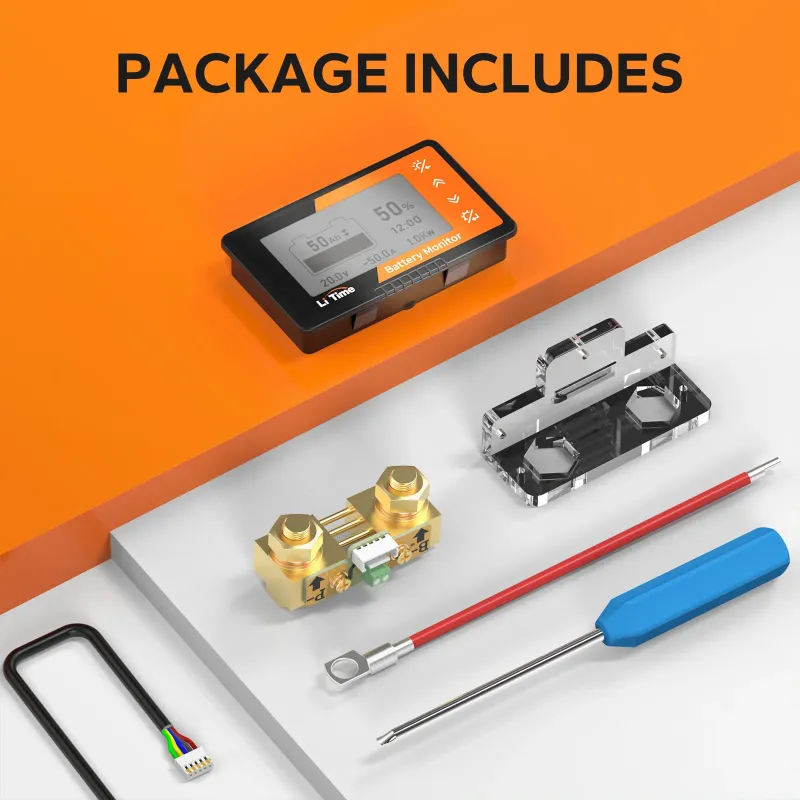

- Included: Shunt (500A), main unit, cables (RJ12, power), mounting hardware.
Pair this monitor with our premium LiFePO4 batteries for a complete, high-efficiency power ecosystem. Whether tracking RV batteries, solar banks, or marine setups, the LiTime 500A monitor delivers unmatched precision and peace of mind. Order now and experience LiTime’s innovative battery technology—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
