LiTime 250A Switchable Circuit Breaker for LiFePO4 Batteries
Model #: 250A Switchable Circuit Breaker SKU: BKR250A-BK-H
Product Details
Product Description for LiTime 250A Switchable Circuit Breaker for LiFePO4 Batteries
LiTime 250A Switchable Circuit Breaker for LiFePO4 Lithium Batteries – Reliable Overcurrent Protection Solution for RV, Solar, Marine, and Off-Grid Systems
Elevate your battery safety with the LiTime 250A Switchable Circuit Breaker, a compact, high-performance device designed to protect 12V/24V/36V/48V LiFePO4, lithium-ion, AGM, and lead-acid batteries from overcurrent and short circuits in RVs, solar arrays, marine vessels, trolling motors, off-grid cabins, and home storage setups. Featuring a manual reset switch for easy on/off control and automatic trip protection at 250A, it interrupts faulty circuits to prevent damage, fires, and explosions. Built with tinned copper terminals for corrosion resistance and a waterproof IP67-rated enclosure, this breaker supports up to 100V DC and 300V AC with a mounting bracket for secure installation. Compatible with M8 bolts and heat-shrink terminals (not included), it offers reliable performance from -40°F to 185°F (-40°C to 85°C) as a fuse replacement for simplified maintenance. Key Features:
- Manual Reset Switch: Easy on/off control for manual disconnection and quick reset after tripping.
- Automatic Trip Protection: Interrupts circuits at 250A overcurrent to safeguard batteries and wiring from damage.
- Waterproof IP67 Rating: Fully sealed against dust and water for safe use in marine, RV, and outdoor environments.
- Tinned Copper Terminals: Corrosion-resistant M8 terminals for secure, high-current connections.
- Wide Voltage Compatibility: Supports 12V-48V DC systems for versatile use in solar, RV, and marine applications.
- Fuse Replacement: Simplifies maintenance by eliminating the need for disposable fuses.

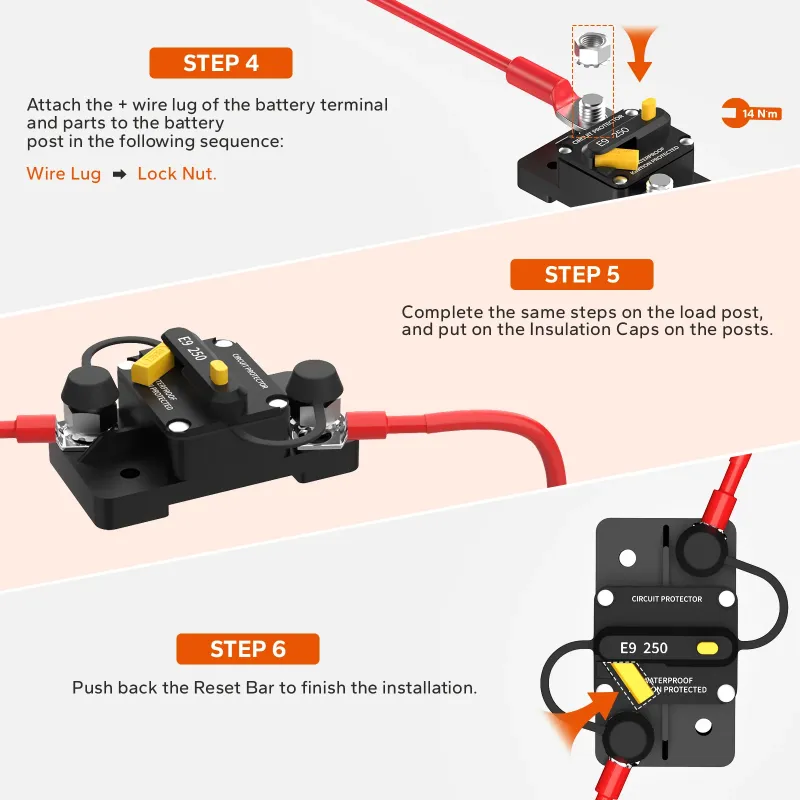

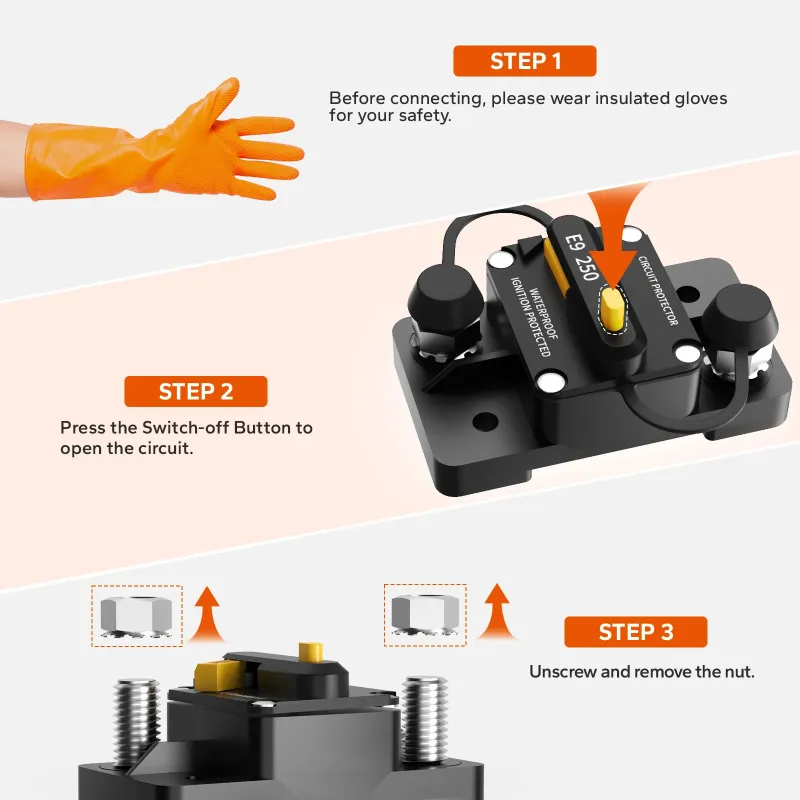

- Easy Installation: Includes mounting bracket and supports M8 bolts (not included) for quick setup.
- Durable Construction: Operates from -40°F to 185°F (-40°C to 85°C) with vibration resistance.
Specifications at a Glance:
- Rated Current: 250A; Voltage Rating: 100V DC / 300V AC.
- Interrupt Capacity: 10kA; Operating Temperature: -40°F to 185°F (-40°C to 85°C).
- Enclosure: IP67 Waterproof; Terminals: M8 Tinned Copper.
- Dimensions: 3.15 x 1.97 x 1.97 in (80 x 50 x 50 mm); Weight: 0.44 lbs (0.2 kg).

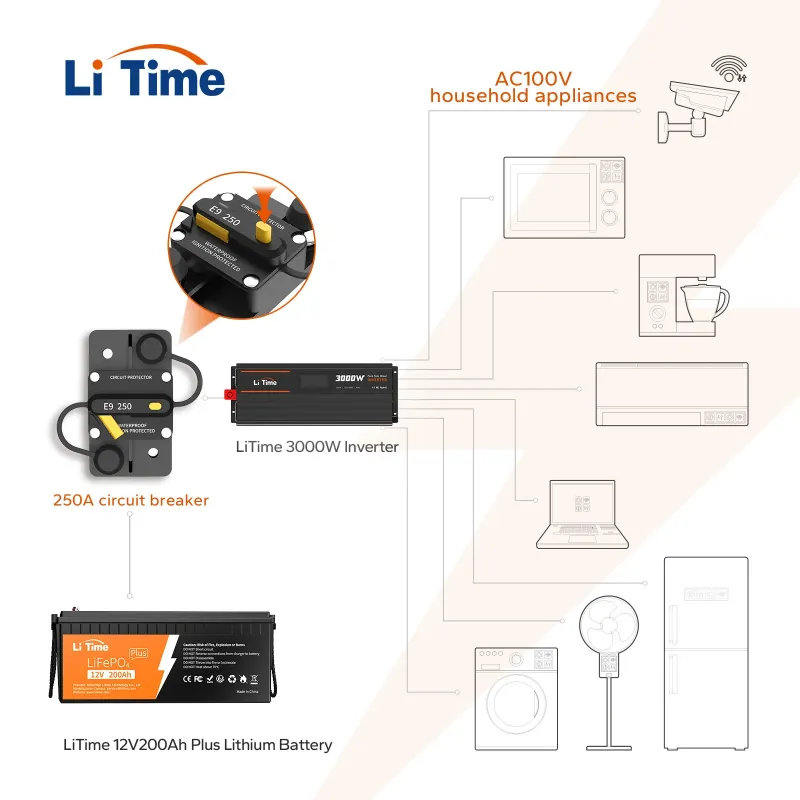

Pair this circuit breaker with our premium LiFePO4 batteries, fuses, and cables for a complete, high-efficiency power ecosystem. Whether protecting RV wiring, solar banks, or marine setups, the LiTime 250A Switchable Circuit Breaker delivers unmatched reliability and peace of mind. Order now and experience LiTime’s innovative electrical accessories—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
