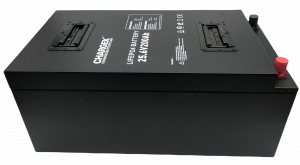

24V 200AH Deep Cycle Lithium Ion Battery
Model #: CX24200IC SKU: 24-LIB-200-IC Weight: 141 lbs
Product Details
This 24V 200AH Lithium Ion Battery is plug and play for starting or deep cycle applications including Marine, RV, Golf, Solar, Off Grid, Propulsion and other applications requiring a lightweight lithium battery to replace Lead Acid, Gel or AGM Batteries.
Lifetime Lithium Warranty: Free replacement within 5 years, Lifetime 50% off of a new replacement. Read More
POWER & ENERGY
THE ELECTRIC ADVANTAGE
| Nominal Voltage |
25.6V |
| Charge Voltage |
29.2V |
| Peak Discharge (5 Sec) |
800A |
| Continuous Charge / Discharge Rate |
100/200A |
| Capacity (amp hours) |
200AH |
| Capacity (watts) |
5120W |
| Chemistry |
Lithium Iron Phosphate (LiFePO4) |
SIZE & WEIGHT
ADVANTAGE
| Model |
CX24200IC |
| Group Size |
NA |
| Weight |
123 Lbs |
| Length |
23.62" |
| Width |
12.8" |
| Height |
10" |
TECHNOLOGY
ADVANTAGE
| Usable Capacity (AH) |
200AH |
| Depth of Discharge |
>100% DOD |
| Reserve Minutes @ 20A |
600 min |
| Reserve Minutes @ 50A |
240 min |
| Self Discharge |
<1% per mo |
| Chemistry |
Lithium Iron Phosphate (LiFePO4) |
| Cell Type |
Cylindrical |
| Modular |
Series or Parallel Connection |
SAFETY & PROTECTION
ADVANTAGE
| Built in Automatic Battery Protection System |
Internal |
| Automatic Low Voltage Disconnect |
20V |
| Automatic Short Circuit Protection |
Instant |
| Automatic Over Voltage Protection |
31.6V |
| Automatic Reverse Polarity Protection |
Instant |
| Internal Cell Thermal Safety Fuse |
Yes |
| Flame Retardant Electrolyte |
Yes |
| Length Way Circuit Boards |
Yes |
| Automatic Internal Cell Balancing |
Yes |
| Automatic Fault Recovery |
Yes |
| Explosion Proof Stainless Steel Cells |
Yes |
TEMPERATURE PERFORMANCE
ADVANTAGE
| Celsius |
Fahrenheit |
Usable Capacity |
| 60 |
140 |
103% |
| 50 |
122 |
102% |
| 40 |
104 |
100% |
| 30 |
86 |
100% |
| 20 |
68 |
98% |
| 10 |
50 |
92% |
| 0 |
32 |
83% |
| -10 |
14 |
80% |
| -20 |
-4 |
70% |
| -30 |
-22 |
60% |
| -40 |
-40 |
10% |
| -50 |
-58 |
0% |
FAST SHIPPING
ADVANTAGE
| Standard Shipping |
UPS GROUND |
| Expedited Air Shipping |
UPS WORLDWIDE EXPRESS |
| Shipping Time |
3-4 week lead time for production |
LIFETIME WARRANTY
ADVANTAGE
| Repair or Replace |
First 5 Years |
| Repair or Pro Rate |
Life Time |
| Detailed Warranty Information |
Warranty |
This Product Is Perfect For
Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.
This 24V 200AH Lithium Ion Battery is the perfect replacement from an AGM, GEL or Lead Acid Battery. Designed as a "drop in replacement" meaning all you have to do is take out your old battery and place the Lithium Battery in the same way.
