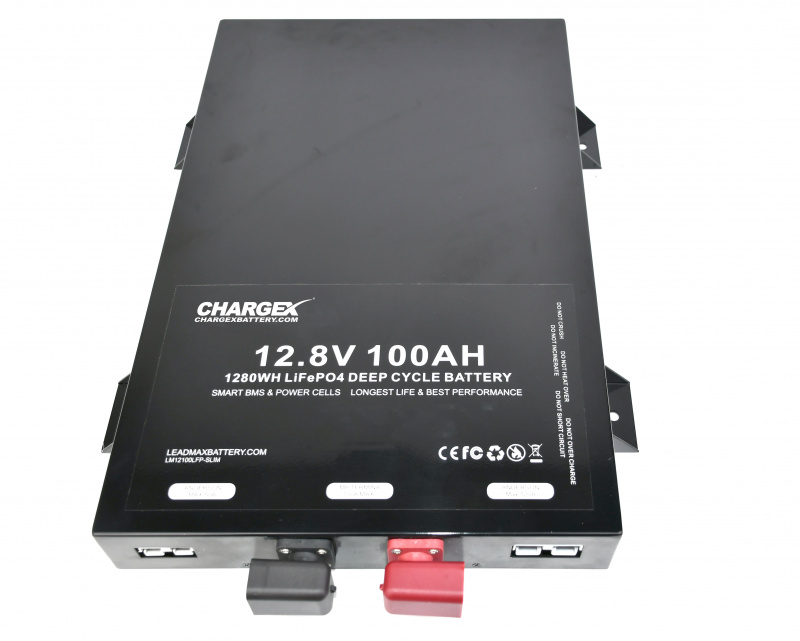

12V 100AH Slimline Lithium Ion Battery
Model #: CXSL100 Weight: 30 lbs
Product Details
POWER & ENERGY
THE ELECTRIC ADVANTAGE
| Nominal Voltage |
12.8V |
| Charge Voltage |
14.4V - 14.6V |
| Peak Discharge (5 Sec) |
1000A |
| Continuous Charge / Discharge Rate |
100A |
| Capacity (amp hours) |
100AH |
| Capacity (watts) |
1280W |
| Chemistry |
Lithium Iron Phosphate (LiFePO4) |
SIZE & WEIGHT
ADVANTAGE
| Model |
CX100 |
| Group Size |
Slim Line |
| Weight |
30 Lbs |
| Length |
20.47" |
| Width |
12.40" |
| Height |
2.56" |
TECHNOLOGY
ADVANTAGE
| Usable Capacity (AH) |
108AH |
| Depth of Discharge |
>100% DOD |
| Reserve Minutes @ 20A |
300 min |
| Reserve Minutes @ 50A |
120 min |
| Self Discharge |
<3% per mo |
| Chemistry |
Lithium Iron Phosphate (LiFePO4) |
| Cell Type |
Cylindrical |
| Modular |
Series or Parallel Connection |
SAFETY & PROTECTION
ADVANTAGE
| Built in Automatic Battery Protection System |
Internal |
| Automatic Low Voltage Disconnect |
8V |
| Automatic Short Circuit Protection |
Instant |
| Automatic Over Voltage Protection |
15.8V |
| Automatic Reverse Polarity Protection |
Instant |
| Internal Cell Thermal Safety Fuse |
Yes |
| Flame Retardant Electrolyte |
Yes |
| Length Way Circuit Boards |
Yes |
| Automatic Internal Cell Balancing |
Yes |
| Automatic Fault Recovery |
Yes |
| Explosion Proof Stainless Steel Cells |
Yes |
TEMPERATURE PERFORMANCE
ADVANTAGE
| Celsius |
Fahrenheit |
Usable Capacity |
| 60 |
140 |
103% |
| 50 |
122 |
102% |
| 40 |
104 |
100% |
| 30 |
86 |
100% |
| 20 |
68 |
98% |
| 10 |
50 |
92% |
| 0 |
32 |
83% |
| -10 |
14 |
80% |
| -20 |
-4 |
70% |
| -30 |
-22 |
60% |
| -40 |
-40 |
10% |
| -50 |
-58 |
0% |
SHIPPING
ADVANTAGE
| Standard Shipping |
UPS GROUND |
| Expedited Air Shipping |
UPS WORLDWIDE EXPRESS |
| Shipping Time |
24 HOURS |
LIFETIME WARRANTY
ADVANTAGE
| Repair or Replace |
First 5 Years |
| Repair or Pro Rate |
Life Time |
| Detailed Warranty Information |
Warranty |
This Product Is Perfect For
Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.
