12V 80AH Lithium Ion Battery

Model #: CX80 SKU: 12-LIB-80 Weight: 28 lbs

Quantity
Price $724.99 $849.99 +Add to wishlist +Add to gift registry

Product Details

IN STOCK

The Chargex® CX80 - 12V 80AH Lithium Ion Battery features the latest and most advanced Lithium Iron Phosphate - LiFePO4 Battery Technology.

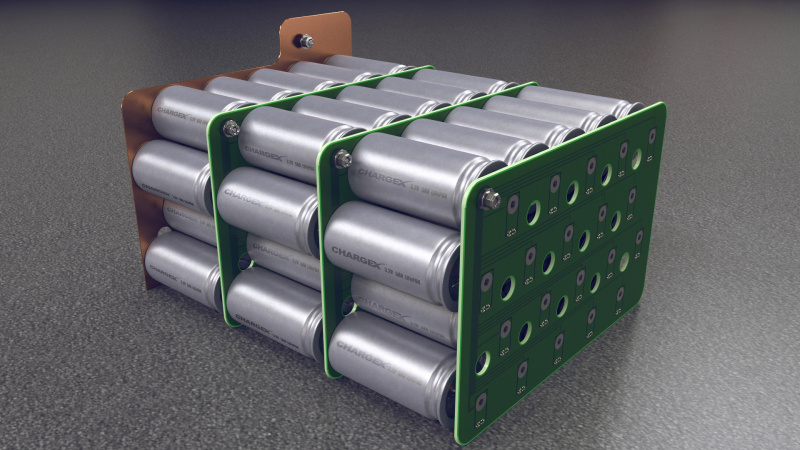

Designed for Deep Cycle applications, the CX80 is engineered with our - High Output 3.2V Stainless Steel LiFePO4 Cells that are bolted together for Rigid Strength and Current Conductivity vs. the tab welded method. The CX80 is Plug and Play for any application that currently uses lead acid, gel or agm batteries.


The fully automatic Built In Battery Management System provides cell balancing, over charge or over discharge protection, short circuit and reverse polarity protection all making the Chargex CX80, one of the world's safest and most advanced lithium batteries.


The Chargex® CX80 comes with the industries leading - Lifetime Warranty.


12V 300AH Lithium Battery Data Sheet
CX80 - 12V Lithium Ion Battery Data Sheet

Material Safety Data Sheet  (MSDS)



POWER & ENERGY
THE ELECTRIC ADVANTAGE

Nominal Voltage 12.8V
Charge Voltage 14.4V - 14.6V
Cold Cranking Amps 800A
Continuous Charge / Discharge Rate 80A
Capacity (amp hours) 80AH
Capacity (watts) 960W
Chemistry Lithium Iron Phosphate (LiFePO4)


SIZE & WEIGHT
ADVANTAGE

Model CX80
Group Size 27
Weight 28 Lbs
Length 12"
Width 6.75"
Height 8.25"


TECHNOLOGY
ADVANTAGE

Usable Capacity (AH) 80AH
Depth of Discharge >100% DOD
Reserve Minutes @ 20A 240 min
Reserve Minutes @ 50A 90 min
Self Discharge <3% per mo
Chemistry Lithium Iron Phosphate (LiFePO4)
Cell Type Cylindrical
Modular Series or Parallel Connection



SAFETY & PROTECTION
ADVANTAGE

Built in Automatic Battery Protection System        Internal
Automatic Low Voltage Disconnect 8V
Automatic Short Circuit Protection Instant
Automatic Over Voltage Protection 15.8V
Automatic Reverse Polarity Protection Instant
Internal Cell Thermal Safety Fuse Yes
Flame Retardant Electrolyte Yes
Length Way Circuit Boards Yes
Automatic Internal Cell Balancing Yes
Automatic Fault Recovery Yes
Explosion Proof Stainless Steel Cells Yes



TEMPERATURE PERFORMANCE
ADVANTAGE

Celsius Fahrenheit Usable Capacity
60 140 103%
50 122 102%
40 104 100%
30 86 100%
20 68 98%
10 50 92%
0 32 83%
-10 14 80%
-20 -4 70%
-30 -22 60%
-40 -40 10%
-50 -58 0%



FAST SHIPPING
ADVANTAGE

Standard Shipping UPS GROUND
Expedited Air Shipping UPS WORLDWIDE EXPRESS
Shipping Time 24 HOURS



LIFETIME WARRANTY
ADVANTAGE

Repair or Replace First 5 Years
Repair or Pro Rate Life Time
Detailed Warranty Information Warranty



This Product Is Perfect For

Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.


This 12V 80AH Lithium Ion Battery is the perfect replacement from a group 27 AGM, GEL or Lead Acid Battery. Designed as a "drop in replacement
" meaning all you have to do is take out your old group 31 battery and place the Lithium Battery in the same way.
