12V 12AH Lithium Ion Battery

Model #: CX12 SKU: 12-LIB-12 Weight: 3.95 lbs

Quantity
Price $109.99 $149.99 +Add to wishlist +Add to gift registry

Product Details

The Chargex® CX12 - 12V 12AH Lithium Ion Battery features the latest and most advanced Lithium Iron Phosphate - LiFePO4 Battery Technology.

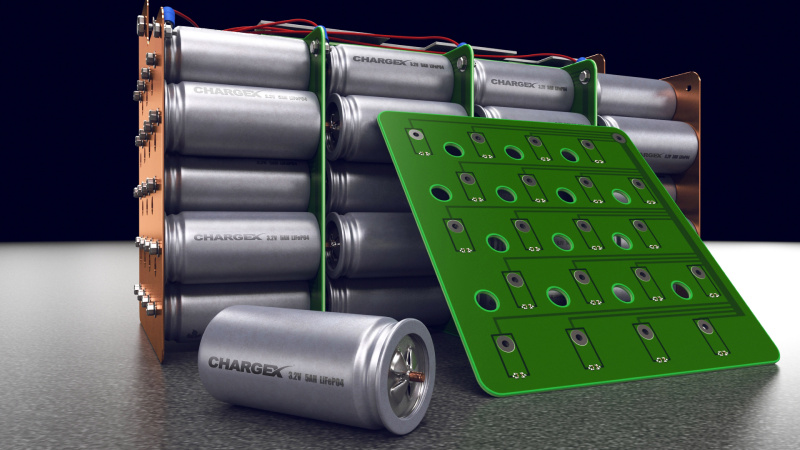

Designed for Deep Cycle applications, the CX12 is engineered with our - High Output 3.2V Stainless Steel LiFePO4 Cells that are bolted together for Rigid Strength and Current Conductivity vs. the tab welded method. The CX12 is Plug and Play for any application that currently uses lead acid, gel or agm batteries.


The fully automatic Built In Battery Management System provides cell balancing, over charge or over discharge protection, short circuit and reverse polarity protection all making the Chargex CX12, one of the world's safest and most advanced lithium batteries.


The Chargex® CX12 comes with the industries leading - Lifetime Warranty.


12V 300AH Lithium Battery Data Sheet
CX12 - 12V Lithium Ion Battery Data Sheet
CX12 - Material Safety Data Sheet  (MSDS)



POWER & ENERGY
THE ELECTRIC ADVANTAGE

Nominal Voltage 12.8V
Charge Voltage 14.4V - 14.6V
Peak Discharge (5 Sec) 120A
Continuous Charge / Discharge Rate 12A
Capacity (amp hours) 12AH
Capacity (watts) 144W
Chemistry Lithium Iron Phosphate (LiFePO4)


SIZE & WEIGHT
ADVANTAGE

Model CX12
Group Size 1212
Weight 3.95 Lbs
Length 5.9"
Width 3.8"
Height 3.75"


TECHNOLOGY
ADVANTAGE

Usable Capacity (AH) 12AH
Depth of Discharge >100% DOD
Reserve Minutes @ 12A 60 min
Self Discharge <3% per mo
Chemistry Lithium Iron Phosphate (LiFePO4)
Cell Type Cylindrical
Modular Series or Parallel Connection



SAFETY & PROTECTION
ADVANTAGE

Built in Automatic Battery Protection System        Internal
Automatic Low Voltage Disconnect 8V
Automatic Short Circuit Protection Instant
Automatic Over Voltage Protection 15.8V
Automatic Reverse Polarity Protection Instant
Internal Cell Thermal Safety Fuse Yes
Flame Retardant Electrolyte Yes
Length Way Circuit Boards Yes
Automatic Internal Cell Balancing Yes
Automatic Fault Recovery Yes
Explosion Proof Stainless Steel Cells Yes



TEMPERATURE PERFORMANCE
ADVANTAGE

Celsius Fahrenheit Usable Capacity
60 140 103%
50 122 102%
40 104 100%
30 86 100%
20 68 98%
10 50 92%
0 32 83%
-10 14 80%
-20 -4 70%
-30 -22 60%
-40 -40 10%
-50 -58 0%



FAST SHIPPING
ADVANTAGE

Standard Shipping UPS GROUND
Expedited Air Shipping UPS WORLDWIDE EXPRESS
Shipping Time 24 HOURS



LIFETIME WARRANTY
ADVANTAGE

Repair or Replace First 5 Years
Repair or Pro Rate Life Time
Detailed Warranty Information Warranty



This Product Is Perfect For

Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.


This 12V 12AH Lithium Ion Battery is the perfect replacement from an AGM, GEL or Lead Acid Battery. Designed as a "drop in replacement
" meaning all you have to do is take out your old battery and place the Lithium Battery in the same way.
