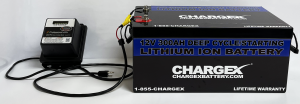

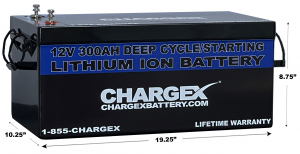

12V 300AH Lithium Ion Battery 8D
Model #: CX3008D SKU: 12-LIB-300-8D Weight: 87 lbs
Product Details
IN STOCK
The Chargex® CX300 - 12V 300AH Lithium Ion Battery features the latest and most advanced Lithium Iron Phosphate - LiFePO4 Battery Technology.
Designed for Marine & RV applications, the CX300 is engineered to handle extreme vibration and is Plug and Play for any application that currently uses lead acid, gel or agm batteries. Our High Output 3.2V Stainless Steel LiFePO4 Cells are bolted together for Rigid Strength and Current Conductivity vs. the tab welded method.
The fully automatic Built In Battery Management System provides cell balancing, over charge or over discharge protection, short circuit and reverse polarity protection all making the Chargex CX300, one of the world's safest and most advanced lithium batteries.
The Chargex® CX300 comes with the industries leading - Lifetime Warranty.

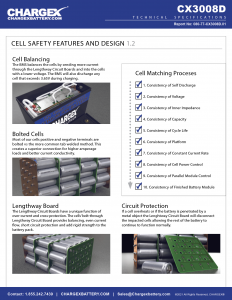

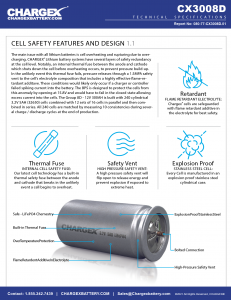

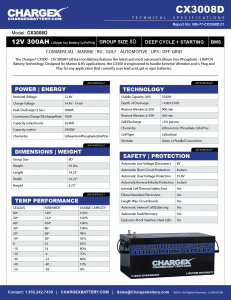

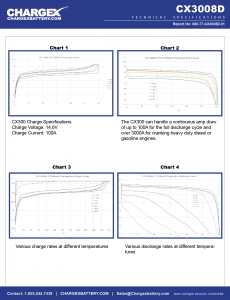

CX300 - 12V Lithium Ion Battery Data Sheet
CX300 - Material Safety Data Sheet (MSDS)
POWER & ENERGY
THE ELECTRIC ADVANTAGE
| Nominal Voltage | 12.8V |
| Charge Voltage | 14.4V - 14.6V |
| Cold Cranking Amps / Peak Discharge (5 Sec) | 3000A |
| Continuous Charge / Discharge Rate | 100A |
| Capacity (amp hours) | 324AH |
| Capacity (watt hours) | >3888WH |

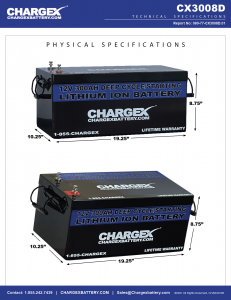

SIZE & WEIGHT
ADVANTAGE
| Model | CX300 |
| Group Size | 8D |
| Weight | 87 Lbs |
| Length | 19.25" |
| Width | 10.25" |
| Height | 8.75" |
TECHNOLOGY
ADVANTAGE
| Usable Capacity (AH) | 324AH |
| Depth of Discharge | 100% DOD |
| Reserve Minutes @ 20A | 900 min |
| Self Discharge | <1% per mo |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cell Type | Cylindrical |
| Modular | Series or Parallel Connection |
SAFETY & PROTECTION
ADVANTAGE
| Built in Automatic Battery Protection System | Internal |
| Automatic Low Voltage Disconnect | 8V |
| Automatic Short Circuit Protection | Instant |
| Automatic Over Voltage Protection | 15.8V |
| Automatic Reverse Polarity Protection | Instant |
| Internal Cell Thermal Safety Fuse | Yes |
| Flame Retardant Electrolyte | Yes |
| Length Way Circuit Boards | Yes |
| Automatic Internal Cell Balancing | Yes |
| Automatic Fault Recovery | Yes |
| Explosion Proof Stainless Steel Cells | Yes |
TEMPERATURE PERFORMANCE
ADVANTAGE
| Celsius | Fahrenheit | Usable Capacity |
| 60 | 140 | 103% |
| 50 | 122 | 102% |
| 40 | 104 | 100% |
| 30 | 86 | 100% |
| 20 | 68 | 98% |
| 10 | 50 | 92% |
| 0 | 32 | 83% |
| -10 | 14 | 80% |
| -20 | -4 | 70% |
| -30 | -22 | 60% |
| -40 | -40 | 10% |
| -50 | -58 | 0% |
FAST SHIPPING
ADVANTAGE
| Standard Shipping | UPS GROUND |
| Expedited Air Shipping | UPS WORLDWIDE EXPRESS |
| Shipping Time | Call for availability |

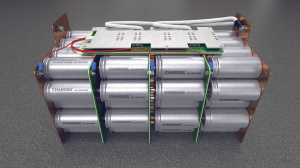

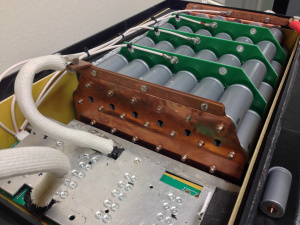

STAINLESS STEEL BOLTED CELLS FOR SUPERIOR STRENGTH
Stainless Steel Bolted Cells
Explosion Proof
BOLTED BMS
LENGTHWAY CIRCUIT BOARDS
Rigid Strength
Cell Balancing
Short Circuit Protection
BUILT IN FULLY AUTOMATIC HEAVY DUTY BMS / BPS
Over Voltage Protection
Low Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
Automatic Cell Balancing

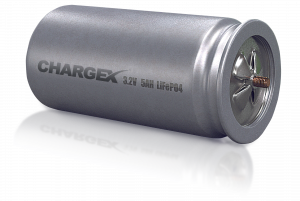

3.2V 5.5AH CHARGEX® STAINLESS STEEL LITHIUM IRON PHOSPHATE BATTERY CELL
Explosion Proof Stainless Steel
High Pressure Safety Vent
Flame Retardant Electrolyte Additive
Bolted for Superior Strength and Conductivity
Safe - LiFePO4 Lithium Iron Phosphate Chemistry
