24V 100Ah Deep Cycle Trolling Motor Battery Set

Model #: 24V 100Ah SKU: 24V 100Ah Set

Quantity
Price $1,590.00 +Add to wishlist +Add to gift registry

Product Details

Dakota Lithium 24V 100Ah Deep Cycle LiFePO4 Trolling Motor Battery Set

Dakota Lithium 24V 100Ah Deep Cycle LiFePO4 Trolling Motor Battery Set (Model: 24V 100Ah) – High-Performance Power Solution for Trolling Motors, Marine, Golf Carts, Solar, and Off-Grid Systems

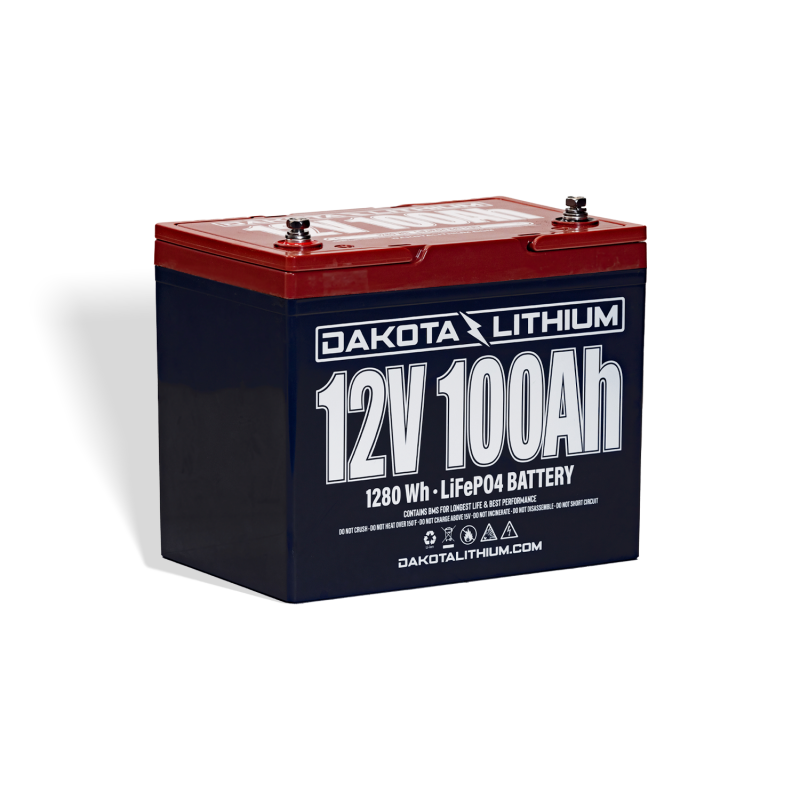

Achieve all-day runtime with the Dakota Lithium 24V 100Ah Deep Cycle LiFePO4 Trolling Motor Battery Set (Part No: 24V 100Ah), a complete kit of two 12V 100Ah batteries wired in series for seamless 24V operation. This set delivers 100Ah of reliable LiFePO4 power at 25.6V (2.56kWh), offering twice the usable capacity of lead-acid batteries at 60% of the weight (55 lbs total), with up to 5,000 cycles at 80% DoD. Featuring Internal Even-Heat Technology for cold-weather charging below 32°F, an active BMS for comprehensive protection, and a flat voltage curve for consistent performance, it supports 100A continuous discharge (200A pulse), making it ideal for 24V trolling motors (up to 80 lb thrust), golf carts, electric outboards, solar storage, or off-grid setups requiring maintenance-free reliability in harsh marine environments.

Key Features:

  • Complete Set Design: Two 12V 100Ah LiFePO4 batteries pre-wired in series for drop-in 24V compatibility; replaces traditional lead-acid packs with zero modifications.
  • Active BMS Protection: Guards against overcharge, over-discharge, short-circuit, and temperature extremes; includes cell balancing for longevity.
  • High Discharge Capability: 100A continuous / 200A pulse (10s); suitable for motor controllers under 240A.
  • Extended Cycle Life: 5,000+ cycles at 80% DoD (up to 80% capacity retention), 5x faster charging than lead-acid.
  • Versatile Compatibility: Drop-in replacement for 24V systems; supports parallel configurations (up to 200Ah); use with 24V 5A LiFePO4 charger (sold separately).
  • Rugged Durability: IP67 sealed, vibration-resistant for marine/off-road; operates -4°F to 140°F discharge (insulate in extreme cold).
  • Eco-Friendly: Non-toxic LiFePO4 chemistry, recyclable, zero maintenance—no watering or venting.
  • 11-Year Warranty: Backed by Dakota Lithium's industry-leading guarantee, plus 30-day money-back.

Specifications at a Glance:

  • Nominal Capacity: 100Ah at 25.6V (2.56kWh).
  • Nominal Voltage: 25.6V.
  • Charge Voltage: 29.2V; Max Charge Current: 50A.
  • Discharge: 100A continuous / 200A pulse (10s); Low Voltage Cutoff: 20V.
  • Cycle Life: 5,000+ at 80% DoD; Operating Temperature: Charge 32°F–113°F / Discharge -4°F–140°F.
  • Certifications: UN38.3, UL1642 (cells), IEC62133, CE, RoHS, ISO 9001:2015.
  • Dimensions (per battery): 10.23" L x 6.60" W x 8.66" H (260 x 169 x 215 mm); Weight (per battery): 27.55 lbs (12.5 kg); Total Set Weight: 55.1 lbs (25 kg).

Pair this battery set with Dakota Lithium 24V chargers or solar controllers for a complete ecosystem. Whether upgrading a trolling motor, powering a golf cart, or building a solar bank, it delivers unmatched efficiency and range. Order now and experience Dakota Lithium’s aerospace-grade engineering—stocked and ready to ship from dakotalithium.com!
