LiTime 12V 12Ah LiFePO4 Lithium Battery for Fish Finder
Model #: 12V 12Ah SKU: 12V12-12-BASIC-8-A12
Product Details
Product Description for LiTime 12V 12Ah LiFePO4 Lithium Battery for Fish Finder
LiTime 12V 12Ah LiFePO4 Deep Cycle Lithium Battery – Compact & Portable Power Solution for Fish Finders, Solar, RV, Marine, and Off-Grid Systems

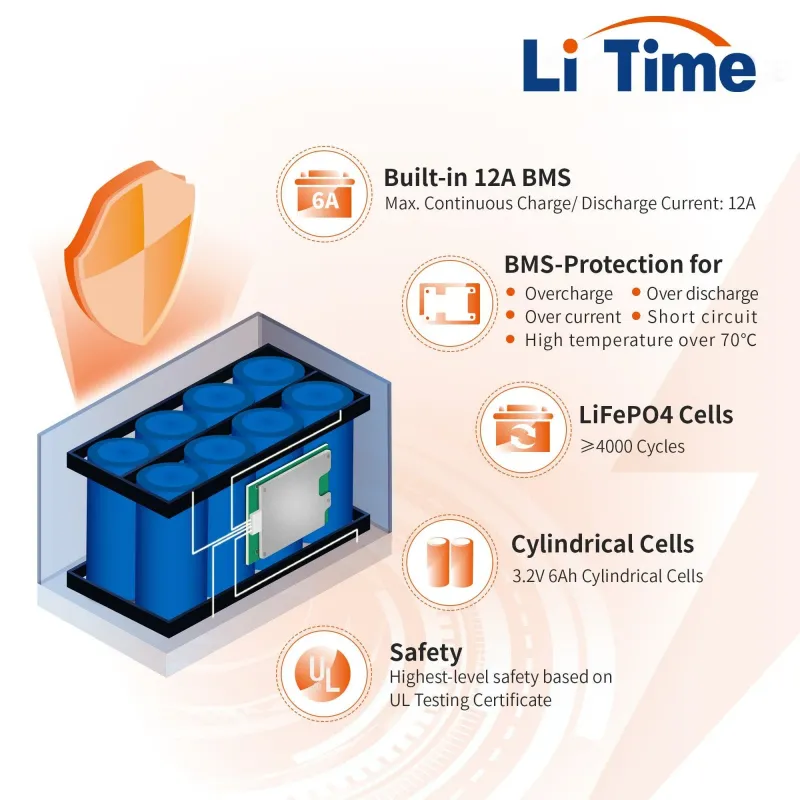

Elevate your portable energy needs with the LiTime 12V 12Ah LiFePO4 battery (Model: 12V 12Ah), a lightweight, high-performance deep cycle battery designed for demanding applications like fish finders, security cameras, LED lights, solar chargers, ham radios, kids' scooters, and outdoor camping gear. Delivering 153.6Wh of energy with a 12A continuous discharge (75A peak for 1s), this battery provides 100% usable capacity, up to 10x longer life than lead-acid equivalents, and fast charging with partial state-of-charge tolerance. Its advanced integrated Battery Management System (BMS) protects against overcharge, over-discharge, short circuits, over-current, and thermal extremes, ensuring safe, efficient performance in rugged environments with an IP65-rated enclosure. Key Features:
- Compact & Lightweight Design: Ultra-portable at just 3.42 lbs and small footprint, 2.1x more energy dense and 3.3x longer lifespan than lead-acid for easy travel and setup.
- Exceptional Cycle Life: Up to 4,000 cycles at 100% depth of discharge, backed by a 3-year limited warranty for superior longevity and value.
- Efficient & Low Maintenance: 99% round-trip efficiency with low self-discharge for minimal upkeep—no watering or equalization needed.
- Wide Temperature Resilience: Discharge from -4°F to 140°F (-20°C to 60°C), charge from 32°F to 122°F (0°C to 50°C), and store from 14°F to 122°F (-10°C to 50°C) for year-round versatility.
- Safe & Certified: UL-1973, FCC, CE, RoHS, and UN38.3 compliant; non-toxic LiFePO4 chemistry with EV-grade cells for zero off-gassing and safe indoor use.
- Rugged IP65 Enclosure: Dust-tight and water-resistant ABS case with F2 bolt terminals for secure, vibration-proof connections in harsh conditions.

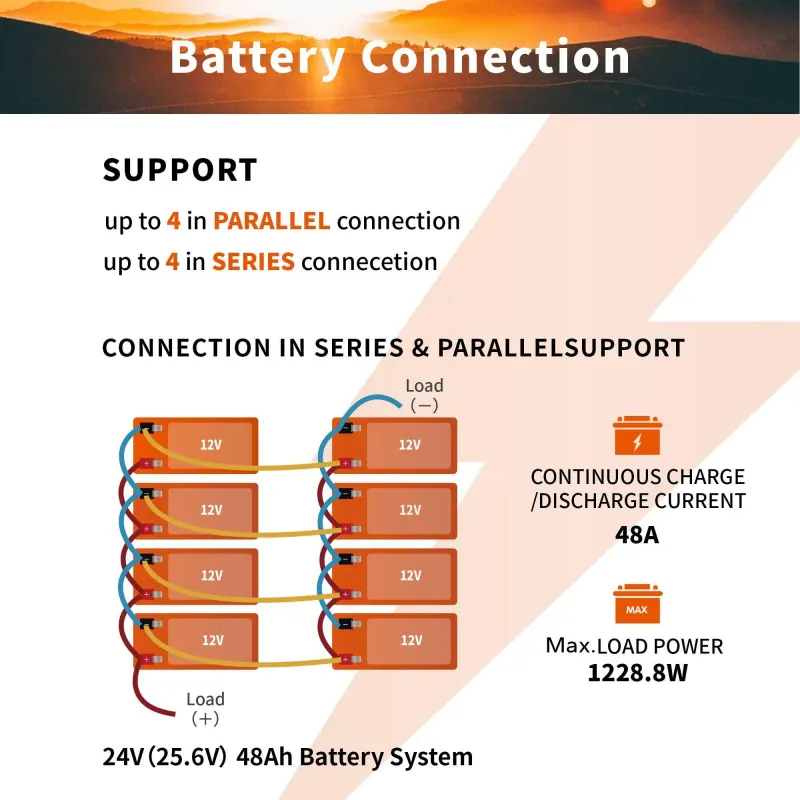

- Scalable Design: Supports up to 4P4S configuration for expanded systems up to 51.2V 48Ah (2,457.6Wh); compatible with major inverters and chargers.
- Versatile Applications: Perfect for alarm systems, game machines, home entertainment, marine setups, and renewable energy storage.
Specifications at a Glance:
- Voltage: 12.8V; Capacity: 12Ah; Energy: 153.6Wh.
- Discharge: 12A continuous, 75A peak (1s); Charge: 12A max.
- Efficiency: 99%; Self-Discharge: <3% per month.

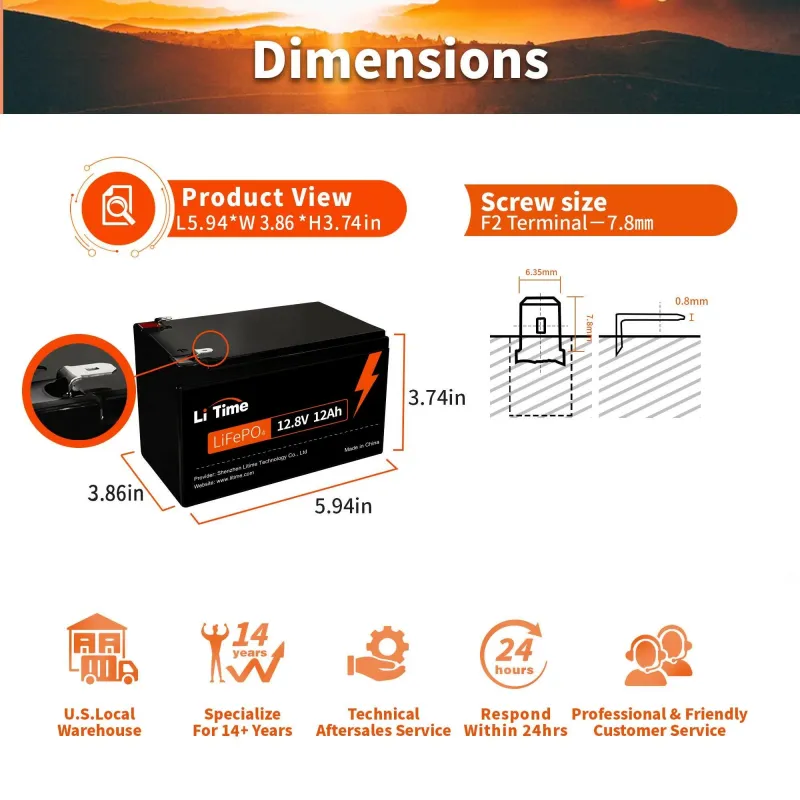

- Dimensions: 5.94 x 3.86 x 3.74 in (151 x 98 x 95 mm); Weight: 3.42 lbs (1.55 kg).
- Enclosure: IP65 ABS; Terminals: F2 Bolts.
Pair this battery with our premium chargers and inverters for a complete, high-efficiency power ecosystem. Whether powering fish finders, solar gadgets, or RV accessories, the LiTime 12V 12Ah delivers unmatched portability and peace of mind. Order now and experience LiTime’s innovative lithium technology—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
