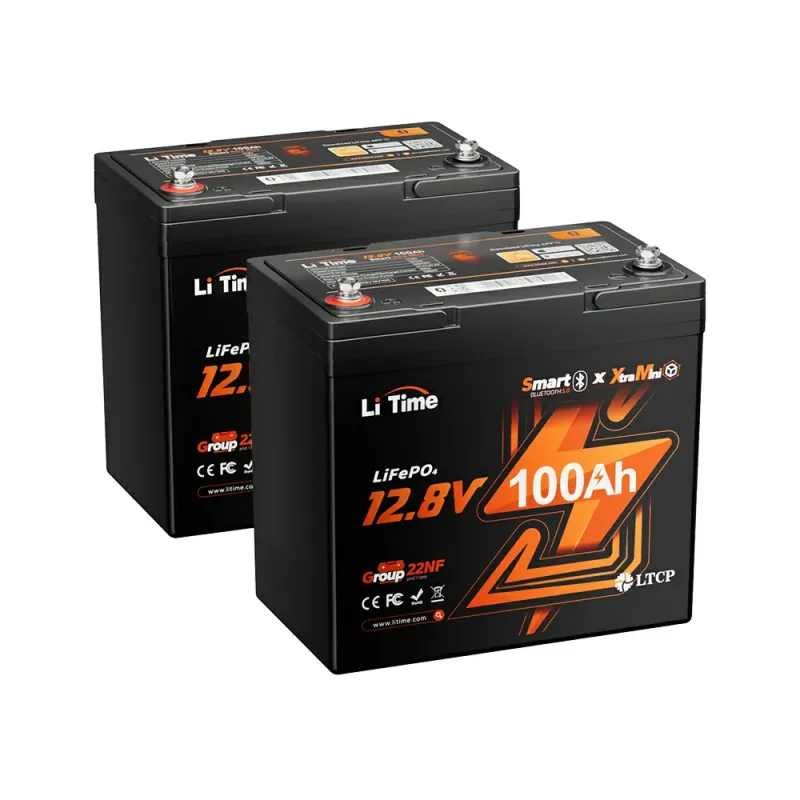

LiTime 12V 100Ah Xtra-Mini Bluetooth Small LiFePO4 Battery
Model #: 12V 100Ah Xtra-Mini SKU: 12V100-100-XTRA-MINI-BT-4-A55
Product Details
Product Description for LiTime 12V 100Ah Xtra-Mini Bluetooth Small LiFePO4 Battery
LiTime 12V 100Ah Xtra-Mini LiFePO4 Bluetooth Deep Cycle Lithium Battery – Compact Group 22NF Power Solution for Marine, Solar, RV, and Off-Grid Systems

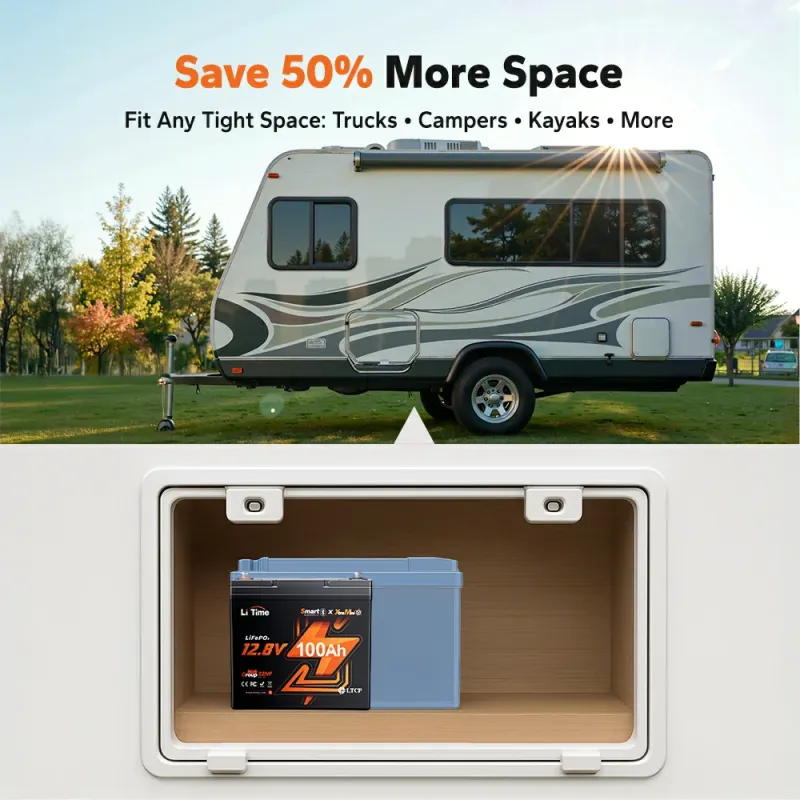

Elevate your energy storage in tight spaces with the LiTime 12V 100Ah Xtra-Mini LiFePO4 battery (Model: 12V 100Ah Xtra-Mini), a lightweight, high-performance deep cycle battery with Bluetooth 5.0 for real-time app monitoring. Designed for demanding marine, solar, RV, and renewable energy applications, it delivers 1280Wh of energy with a 100A continuous discharge (500A peak for 1s) in a Group 22NF-sized enclosure—23% lighter and saving 50% more space than standard models. Its advanced integrated Battery Management System (BMS) protects against overcharge, over-discharge, short circuits, and thermal extremes, ensuring safe, efficient performance in rugged environments with an IP65-rated enclosure. Key Features:

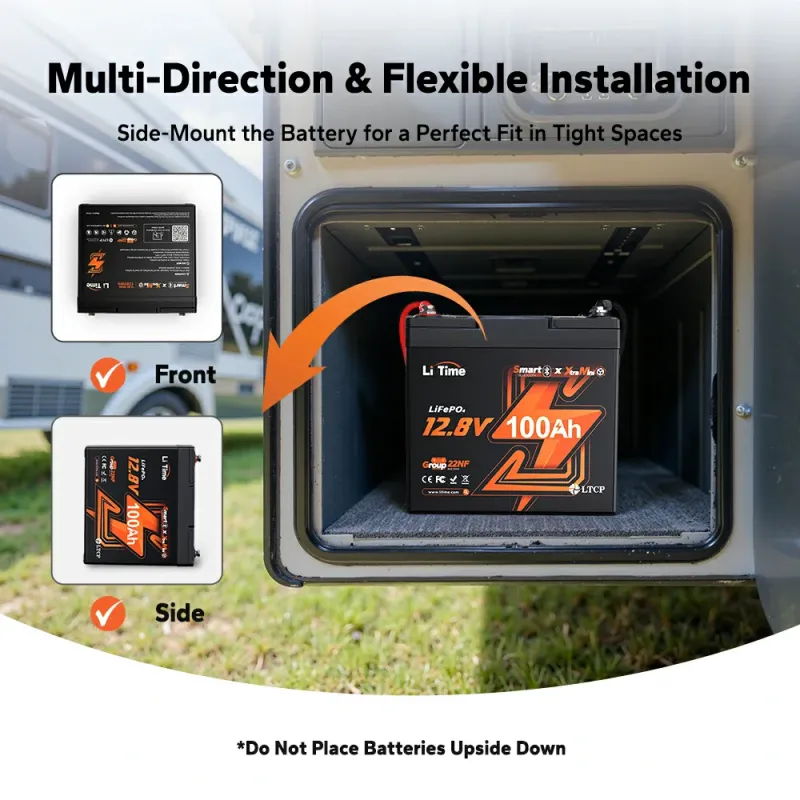

- Compact Xtra-Mini Design: Smallest and lightest 12V 100Ah LiFePO4 battery with 194.7Wh/L power density, multi-directional mounting (front, side, bottom) for versatile installation.
- Smart Bluetooth Monitoring: Bluetooth 5.0 connectivity for instant app-based tracking of SOC, voltage, power, and status—control and diagnostics in 1 second.
- Exceptional Cycle Life: Up to 4,000 cycles at 100% depth of discharge, backed by a 5-year limited warranty for superior longevity and cost savings.

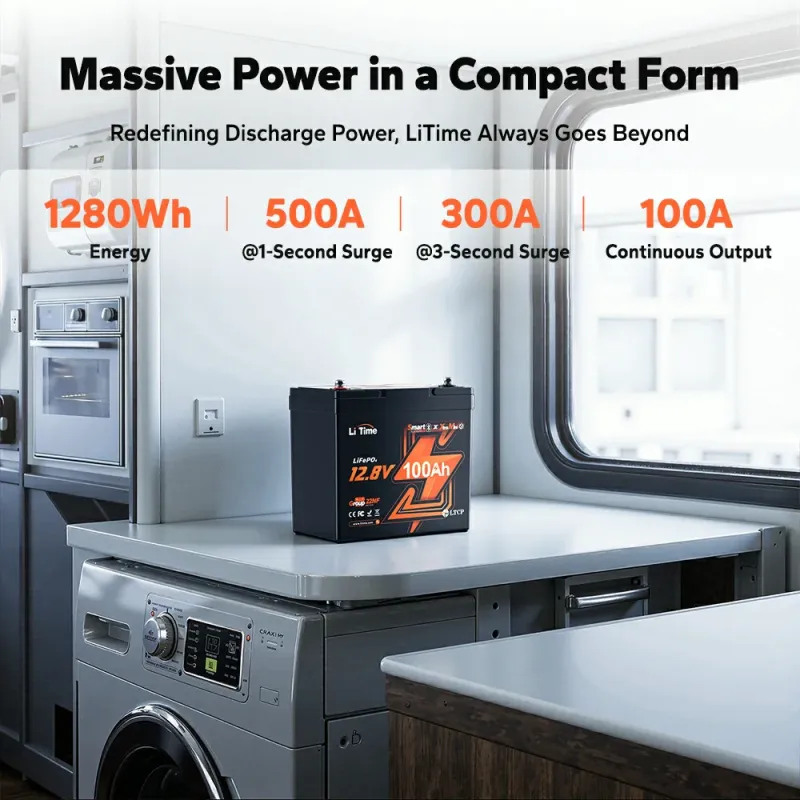

- High-Performance Output: 100A continuous and 500A peak discharge, ideal for trolling motors, solar arrays, or high-drain devices without derating.
- Low-Temp Protection: Auto charge cut-off below 32°F (0°C) with recovery at 41°F (5°C); discharge from -4°F to 140°F (-20°C to 60°C).
- Safe & Certified: UL-1973, FCC, CE, RoHS, UN38.3 compliant; non-toxic LiFePO4 chemistry with EV-grade cells for eco-friendly, indoor-safe operation.
- Rugged IP65 Enclosure: Dust-tight and water-resistant ABS case with M8 bolt terminals for secure, vibration-resistant connections.
- Scalable & Compatible: Up to 4S4P configuration (20.48kWh max); pairs seamlessly with Victron, Renogy, and other inverters for expanded 12V systems.
Specifications at a Glance:
- Voltage: 12.8V; Capacity: 100Ah; Energy: 1280Wh.
- Discharge: 100A continuous, 500A peak (1s); Charge: 100A max.
- Efficiency: 99%; Self-Discharge: <3% per month.
- Dimensions: 9.02 x 5.43 x 8.19 in (229 x 138 x 208 mm); Weight: 19.13 lbs (8.68 kg).
- Enclosure: IP65 ABS; Terminals: M8 Bolts.

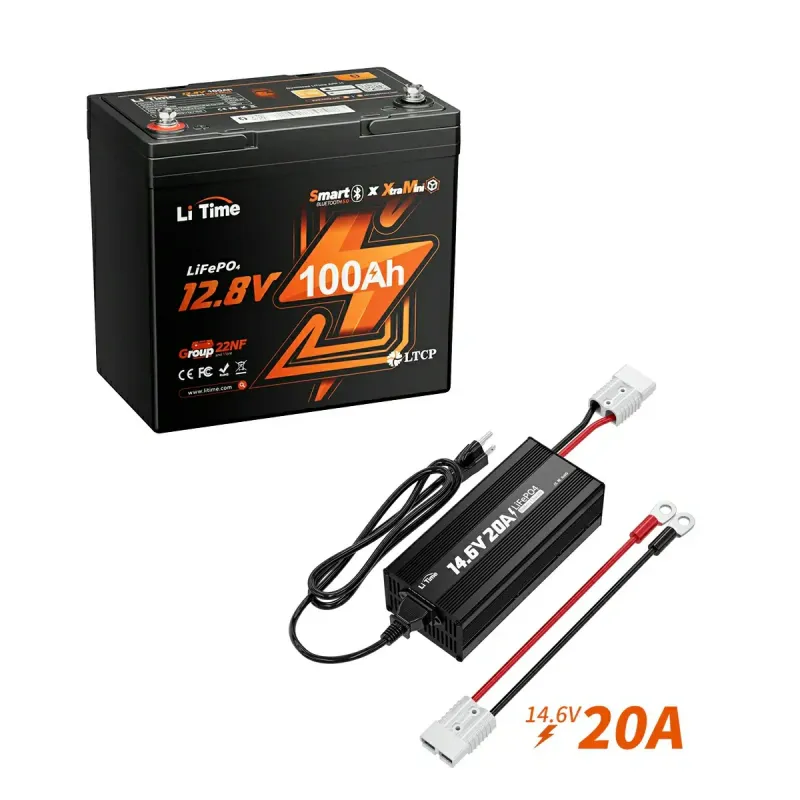

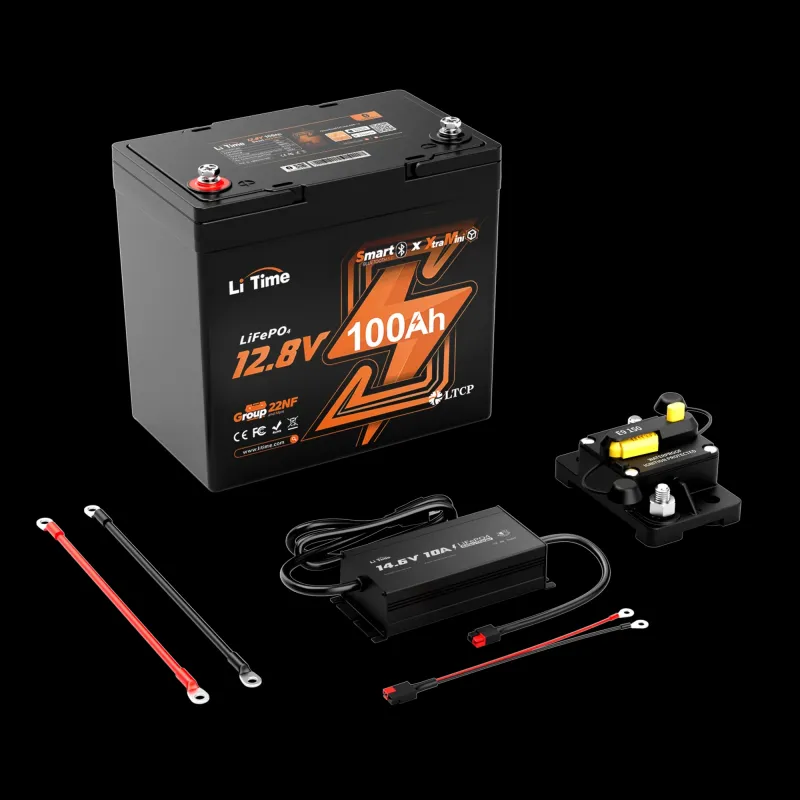

Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether for marine adventures, RV excursions, or solar storage, the LiTime 12V 100Ah Xtra-Mini delivers unmatched compactness, efficiency, safety, and peace of mind. Order now and experience LiTime’s innovative lithium excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
