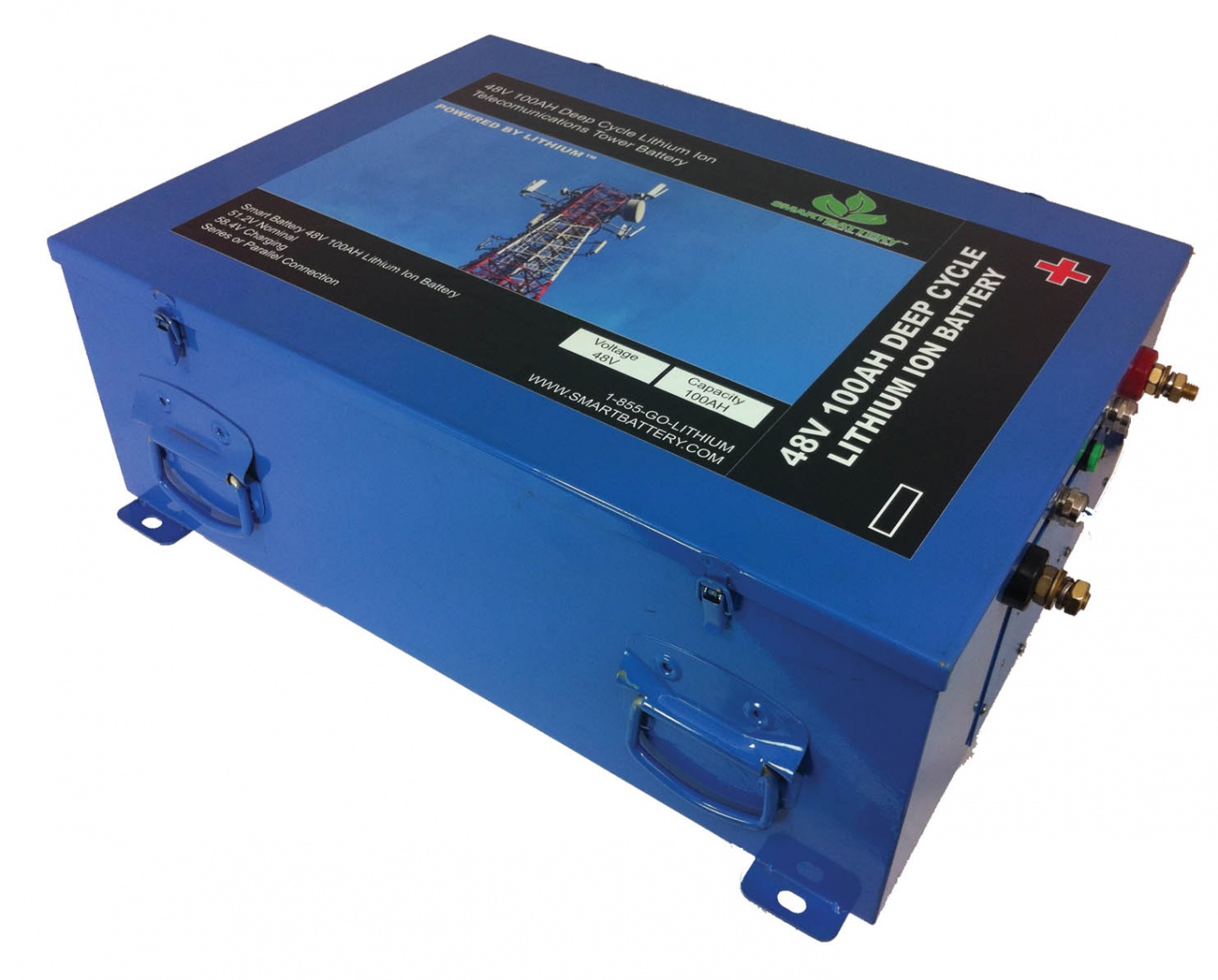

48V 100AH Deep Cycle Lithium Ion Battery

The Smart Battery 48V 100AH Deep Cycle Lithium Ion Battery offers state of the art technology "Lithium Iron Phosphate" the safest and most robust lithium chemistry. Capable of reaching over 5000 cycles, The SB48100 can be re-charged thousands of times providing 100% DOD (depth of discharge) The Smart Battery SB100 is perfect for solar, Telecom, Wind, Marine RV and deep cycle applications.

48V 100AH Deep Cycle Lithium Ion Battery


Product ID: SB48100
PRICE: $4,999.99

Product Specifications:

Built In Fully Automatic Battery Management System

Nominal Voltage 51.2V
Nominal Capacity 100AH / 1200wh

Continuous Amp Draw 400A
Peak Amp Draw/ 1000A 5 sec.

Maximum Charge Current 400A

Discharge cut off voltage 40V
Life Cycle up to 5000 cycles
Capacity after 2000 cycles @ 100% DOD 80AH

Length: 24.4"
Height: 10"
Width: 17.5"

 Weight: 120 lbs.

 Price: $4,999.99

This Product ships within 20 days


SB48100 Technical Data


SPECIFICATION DATA
48 volts 100 amp hours Lithium Iron Phosphate Battery
Charging Current 1 - 400 amps
Charging Voltage 58.4V
Max continuous Discharge Current 400 amps
Cold Cranking Amps 1000A
Height  10"
Width  17.5"
Length  24.4"
Weight

 120 lbs.

FEATURES

  • Fully automatic built in battery protection system
  • Automatic low voltage cut off - 40v
  • Automatic over voltage cut off - 63.2v
  • Automatic short circuit cut off - instant
  • Automatic internal cell balancing
  • High quality bolted cylindrical cell design
  • Built in cell safety fuse " Nano Cell Fuse Technology "
  • Long life 3000 - 5000 cycles
  • Lightweight - 120 lbs.
  • Dry Battery - no toxic lead or acid
  • Zero Maintenance
  • No venting or gassing
  • Heavy duty stainless steel bolts, washers and flat washers included
  • 99.1% efficient
  • Green ROHS compliant - No Lead
  • Use 100% of rated capacity
  • Does not heat up during use

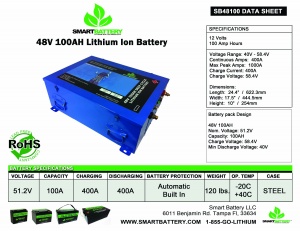

DOWNLOAD DATA SHEET

48V 100AH Deep Cycle Lithium Ion Battery Data Sheet Smart Battery®
